Napco FL-32FACP-LTEVS

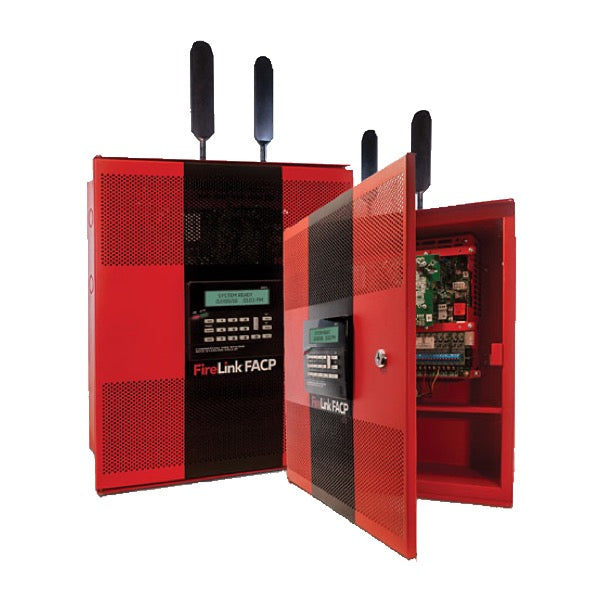

Napco FL-32FACP-LTEVS FireLink 8–32 Zone Fire Alarm Control Panel with LTE Cellular Communicator

The Napco FL-32FACP-LTEVS is an integrated fire alarm control panel (FACP) designed for commercial applications, combining conventional fire alarm control with built-in LTE cellular communication via Verizon’s network. Part of Napco’s FireLink® series, it offers a cost-effective, code-compliant solution that simplifies installation and enhances system reliability.

Key Features:

• Zones and Expansion: Preconfigured with 8 conventional fire zones, expandable up to 32 zones using a combination of conventional, addressable (SLC), and Gemini® commercial wireless devices.

• Notification Appliance Circuits (NACs): Includes two onboard NACs, each rated at 2A @ 24VDC, supporting Class B or Class A wiring configurations. Integrated synchronization for System Sensor™ and Wheelock® notification devices.

• Power Supply: Features a 4A @ 24VDC regulated power supply, with an additional 12VDC regulated 2A auxiliary output for powering peripheral devices.

• Cellular Communication: Equipped with an onboard StarLink® Fire LTE cellular communicator (Verizon), providing sole-path reporting to any central station via dial-up or IP, eliminating the need for traditional phone lines. Utilizes dual diversity antennas and Signal Boost™ circuitry for enhanced signal strength and reliability.
