Napco FWC-FSLC-CZM

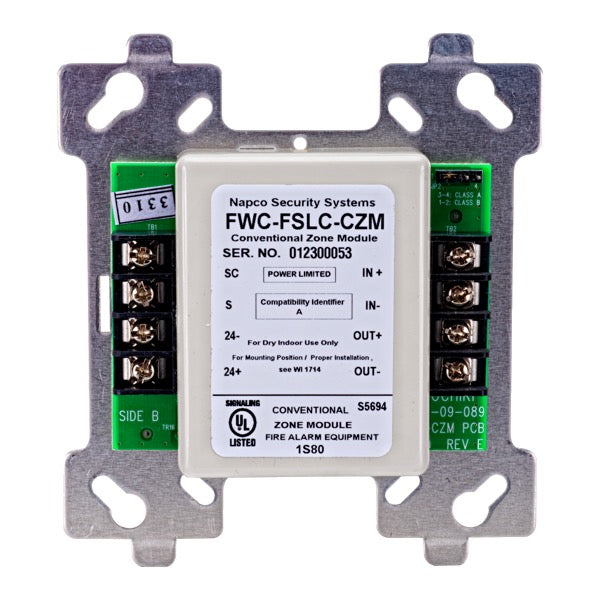

Napco FWC-FSLC-CZM Addressable Conventional Zone Module

The Napco FWC-FSLC-CZM is an addressable conventional zone module designed to integrate conventional detection devices into Napco’s analog addressable fire alarm systems. This module enables the monitoring of a zone of conventional devices, such as two-wire smoke detectors or manual pull stations, within an addressable system framework.

Key Features:

• Addressable Integration: Allows up to 127 devices on a single Signaling Line Circuit (SLC) loop, with each module storing its unique address in onboard EEPROM memory.

• Conventional Device Compatibility: Interfaces and monitors a zone of conventional two-wire detectors or pull stations, supporting up to 25 devices per zone.

• Supervision and Status Reporting: Supervises the power supply and the entire zone of devices, reporting status conditions such as normal, open, or alarm to the control panel.

• LED Status Indicator: Features a bi-colored LED to indicate device status, aiding in quick identification during maintenance or troubleshooting.

• Flexible Wiring Options: Supports selectable Class A or Class B zone wiring configurations, providing installation flexibility.
