Napco GECM-WL-WD2-2

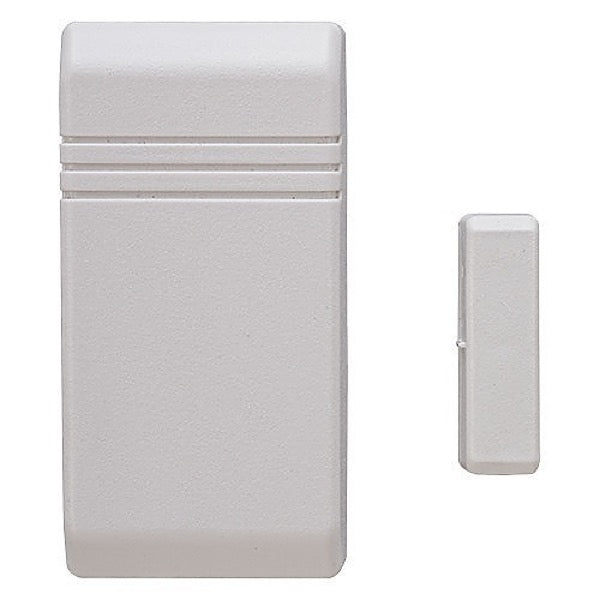

Napco GEMC-WL-WD2-2 Wireless 2-Input Module

The Napco GEMC-WL-WD2-2 is a wireless 2-input module designed for use in Napco’s Gemini C-Series wireless systems and is compatible with GEMC-RECV-series wireless receivers. This module is suitable for both residential and commercial fire and burglary installations, offering flexibility and ease of integration into existing security systems.

Key Features:

• Dual-Zone Inputs: Supports two supervised input zones, allowing for the connection of external devices such as door/window contacts, pull stations, or other initiating devices.

• Wireless Communication: Operates at 319.5 MHz frequency, providing reliable wireless communication within the system.

• Power Source: Powered by a 3-volt lithium battery, offering up to 5 years of battery life under normal conditions.

• Tamper Protection: Equipped with a rear tamper switch to detect unauthorized removal from the mounting surface.

• Supervision: Features a 200-second supervision interval, ensuring timely reporting of status changes to the control panel.

• UL 864 10th Edition Compliant: Meets the standards for commercial fire applications, ensuring compliance with industry regulations.

• Installation Flexibility: Allows for the use of internal reed switches or external contacts, providing versatility in installation scenarios.
