Napco | GEMP1632INTROPK
16/32 Zone Control Panel W/Gemrp1Cae2

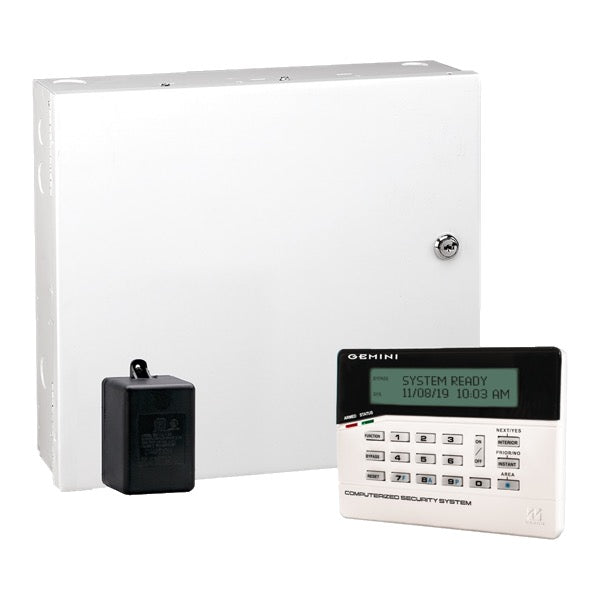

Napco GEMP1632INTROPK Alarm System Kit
The Napco GEMP1632INTROPK is a comprehensive alarm system kit designed for residential and light commercial applications. This kit provides a robust security solution with both hardwired and wireless capabilities, ensuring flexibility and ease of installation.
Kit Components:
• GEM-P1632 Control Panel: A hybrid control panel supporting up to 32 zones, with 8 on-board hardwired or wireless zones, expandable via multiplexing.
• GEM-RP1CAE2 Alpha Keypad: A custom alphanumeric keypad featuring a two-line, 32-character backlit display for intuitive system programming and operation.
• Transformer: Provides the necessary power supply for the control panel and connected devices.
Key Features:
• Expandable Zone Capacity: Starts with 8 on-board zones, which can be doubled to 16 using zone doubling techniques, and further expanded to 32 zones with additional modules.
• Partitioning: Supports up to 2 separate areas, allowing for independent arming and disarming, suitable for properties requiring divided security zones.
• User Codes: Accommodates up to 32 unique user codes, providing personalized access for multiple users.
• Wireless Integration: Compatible with up to 2 RF receivers, enabling the addition of wireless sensors and devices to the system.
• Programmable Outputs: Includes 3 on-board relay outputs, expandable to 8, for controlling external devices such as sirens or automated systems.
• Advanced Programming: Features EZ Programming at the keypad for straightforward system setup and customization.
Specifications:
• Power Requirements: Operates on 16.5VAC supplied by the included transformer.
• Auxiliary Power Output: Provides 12V DC regulated power for additional devices.
• Event Log: Maintains a 400-event log for tracking system activities and events.
• Communication Formats: Supports major formats including 4/2, SIA, 4+2, and Point ID, with backup, double, and split reporting options.
