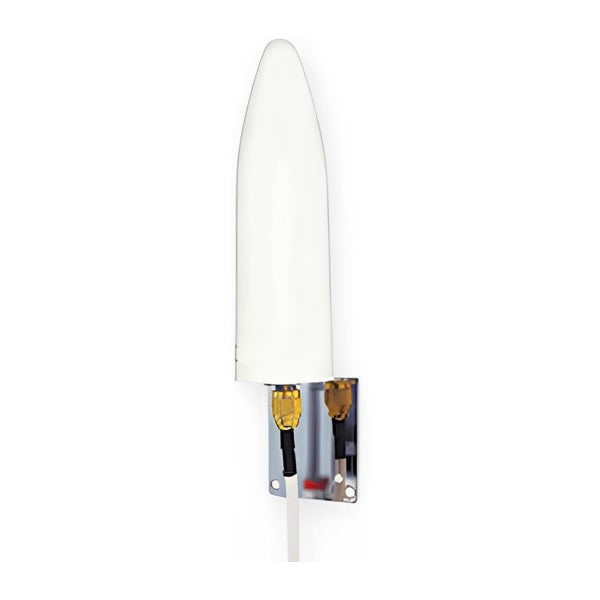

Napco SLE-ANTEXT75

StarLink Extended Range Antenna with 75-Foot Cable

Key Features

• Wide-band omnidirectional cellular antenna for 3G, 4G, and LTE coverage
• Long-life UV-stable polyurethane conical antenna design
• Average gain of 4–9 dBi for extended range performance
• Vertical polarization optimized for cellular signals
• 75-foot double-shielded low-loss coax cable with SMA connector
• L-bracket and U-bolts for flexible pole or wall mounting
• Mount on poles up to 2 inches in diameter
• Suitable for indoor or outdoor installations
• Includes 36-month Napco warranty

Technical Specifications

• Frequency Range: 695–3000 MHz (3G, 4G, LTE bands)
• VSWR: <1.5:1 for 695–3000 MHz, <1.8:1 overall
• Maximum Power: 10 watts
• Polarization: Vertical
• Impedance: 50 ohms nominal
• Antenna Dimensions: 8.875" L × 2.375" OD (225 × 60 mm)
• Weight: 15 oz. (0.43 kg)
• Cable Length: 75 feet double-shielded coax
• Connector: SMA male adapter
• Mounting: L-bracket with U-bolts for 2" diameter poles

Certifications & Requirements

• NEC Grounding Required for outdoor installations
• Maintain 4-foot clearance from large metal objects
• 36-Month Napco Warranty
