Notifier CRM-4-RC
Notifier CRM-4-RC
Only 2 left!

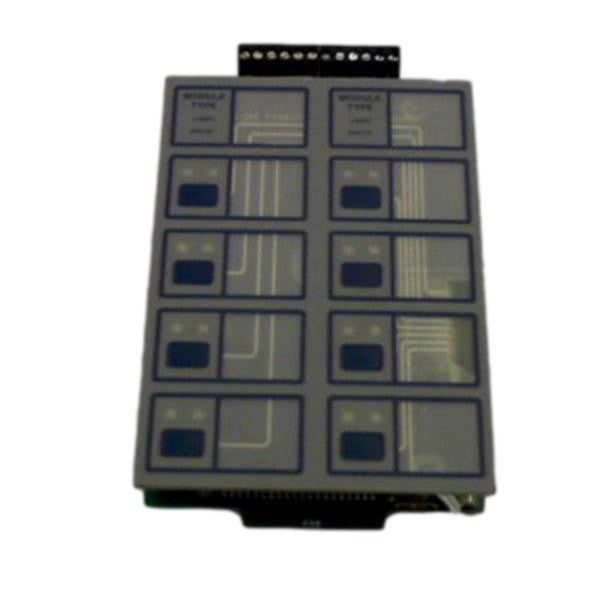

The Notifier CRM-4 Control Relay Module supplies four Form-C (SPDT) dry contacts to a NOTIFIER System 5000, AFC-600, AFP-400, or AFP-300 fire alarm control panel, letting each relay be individually programmed to activate auxiliary equipment on an alarm at a single zone, a group of zones, or system-wide. It mounts in one module position of a CHS-4 chassis using two captive screws, giving installers a compact way to add supervised relay outputs without a separate control panel expansion.
Key Features
- Four independently programmable Form-C relay outputs
- Each relay can be set to activate on an individual zone, zone group, or all-zone alarm
- Manual ON/OFF control switches with Disable/Enable capability per relay
- Mounts directly into a CHS-4 chassis position with two captive screws
Technical Specifications
- Contact Rating: 5A at 30 VDC or 125 VAC resistive; 2A at 125 VAC inductive (Form C)
- Relay Coil: 24 VDC nominal, 660 ohms +/-10%
- Power Consumption: 0.072A at 24 VDC per activated relay
Certifications
- Compatible with NOTIFIER System 5000, AFC-600, AFP-400, and AFP-300 fire alarm control panels
