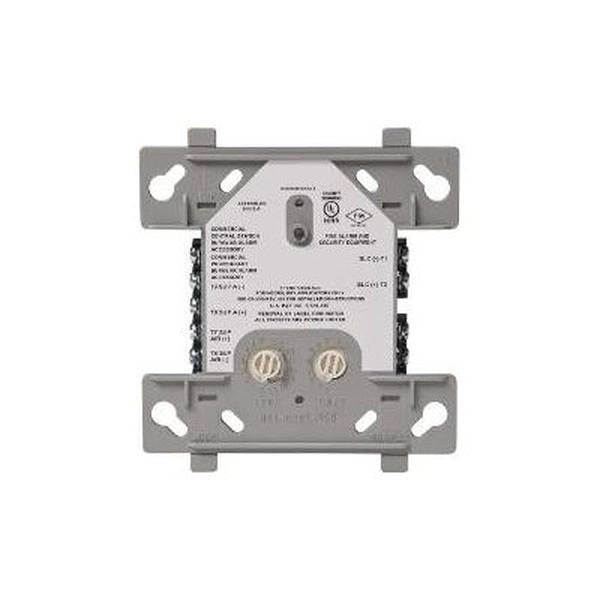

Notifier FMM-1-RC

Key Features

• Intelligent addressable monitor module for two-wire and four-wire initiating device circuits
• Monitors normally open alarm and supervisory devices (heat detectors, pull stations, etc.)
• Supports both Class A (Style D) and Class B (Style B) wiring configurations
• Panel-controlled LED indicator with multiple status modes (flash, latch on/off)
• Rotary address switches for field configuration (01-159)

Technical Specifications

• Power: 15–32 VDC from signaling line circuit
• Maximum Current: 5.0 mA with LED on; standby 375–600 µA
• Circuit Type: Fault-tolerant initiating device circuit (IDC)
• Mounting: Standard 4-inch square electrical box (minimum 2.125 inches depth)
• Terminal Blocks: Removable plug-in blocks for standard AWG wire sizes
• Operating Temperature: 32°F to 120°F (0°C to 49°C)

Certifications

• UL Listed and ULC Listed for intelligent fire alarm monitor modules
• Compliant with NFPA 72 fire alarm installation code
