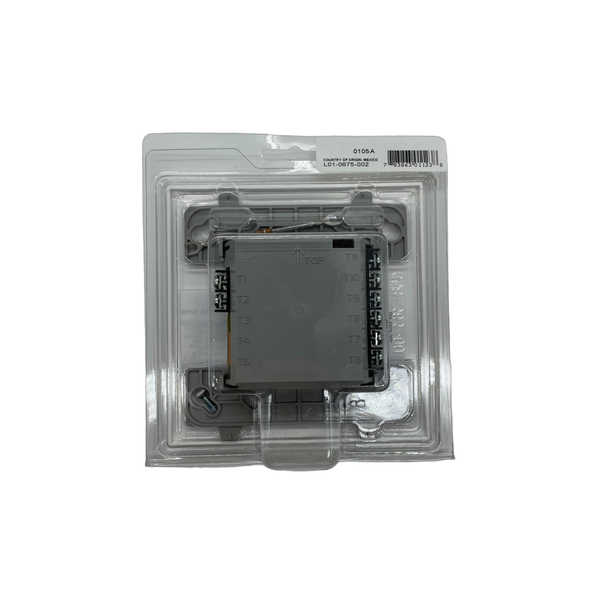

Notifier FZM-1

Key Features

• Intelligent zone monitor module for two-wire conventional detectors
• Monitors and supervises smoke detectors on Style D or Style B circuit
• Transmits full zone status to intelligent control panel
• Built-in LED for status indication
• Direct address entry via rotary switches
• Mounts on standard electrical boxes

Technical Specifications

• Operating Voltage: 15-32 VDC
• Maximum Current Draw: 5.1 mA (LED on), 90 mA per module maximum
• IDC Loop Resistance: Maximum 25 ohms
• Operating Temperature: 32-120°F (0-49°C)
• Humidity: 10-93% non-condensing
• Dimensions: 4.5" H x 4" W x 1.25" D
• Mounting: Standard 4" square electrical box (2.125" minimum depth)
• Addressing: 01-159 on FlashScan loops; 01-99 on CLIP loops

Certifications

• UL 864 Listed intelligent module
