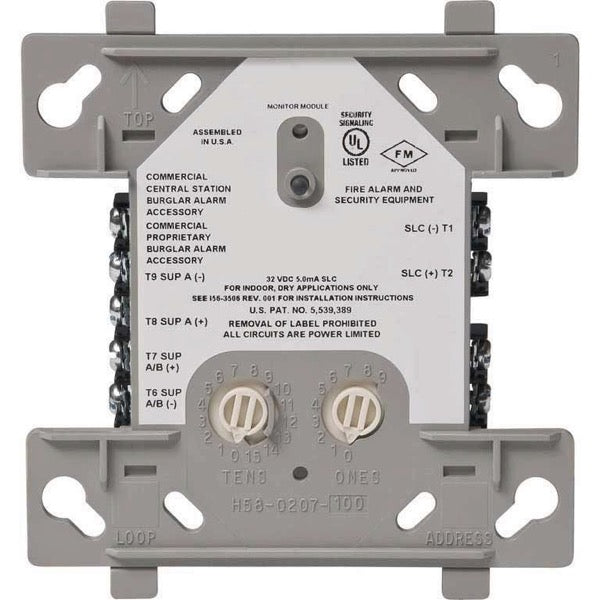

Notifier FZM-1-RC
Notifier FZM-1-RC
RECON-Addressable 2-Wire Detector Monitor
Regular price
$101.22
Sale price
$101.22
Regular price
Shipping calculated at checkout.
Only 2 left!
Key Features
- Intelligent two-wire zone interface module for addressable systems
- Integrates conventional initiating devices into addressable networks
- 2-wire legacy device support without system overhaul
- Form-C supervised output relay
- Mounts directly to 4 square electrical boxes
Technical Specifications
| Operating Voltage | 15 to 32 VDC |
| Maximum Current Draw | 5.1 mA (LED on); 270 microampere average (LED flashing) |
| EOL Resistance | 3.9K Ohms |
| Maximum IDC Wiring Resistance | 25 Ohms |
| External Supply Voltage | 18-28 volts power limited (19-28 VDC with MTL isolator MTL3043 for intrinsically safe applications) |
| Ripple Voltage | 0.1 Volts RMS maximum |
| Mounting | Directly to 4 square electrical boxes, minimum 21/8 inch depth |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
Certifications
- UL 864
- NFPA 72 National Fire Alarm Code
