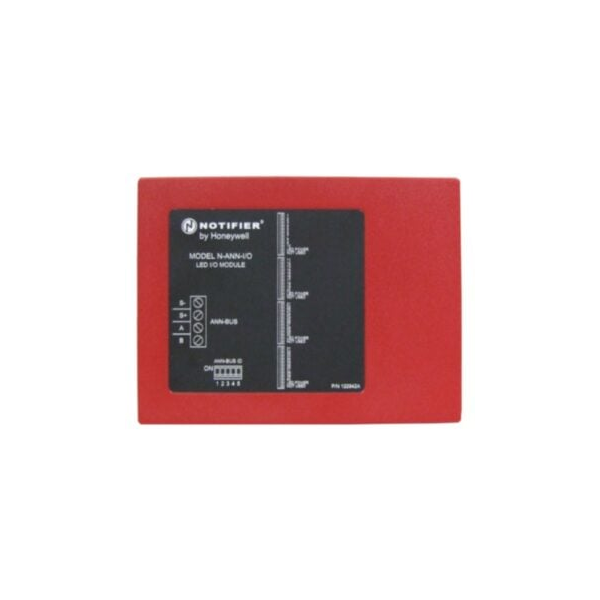

Notifier N-ANN-I/O

Notifier N-ANN-I/O LED Driver Module

Key Features

• LED driver module for graphic annunciators or relay control
• Drives up to 40 LEDs per module
• Two-wire serial ANN-BUS communication interface
• Plastic enclosure for custom annunciator or accessory cabinet mounting
• Supports wide range of annunciator applications

Technical Specifications

• LED Capacity: 40 LEDs per module
• Communication: Two-wire ANN-BUS interface (4-conductor cable for power and data)
• Maximum Wiring Distance: 6,000 ft (1,829 m) from FACP
• Device Limit: Maximum of eight devices per FACP ANN-BUS circuit
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Humidity: 93% ± 2% RH noncondensing

Certifications

• UL Listed to UL 864 Standard
• Compatible with Notifier FACP systems
