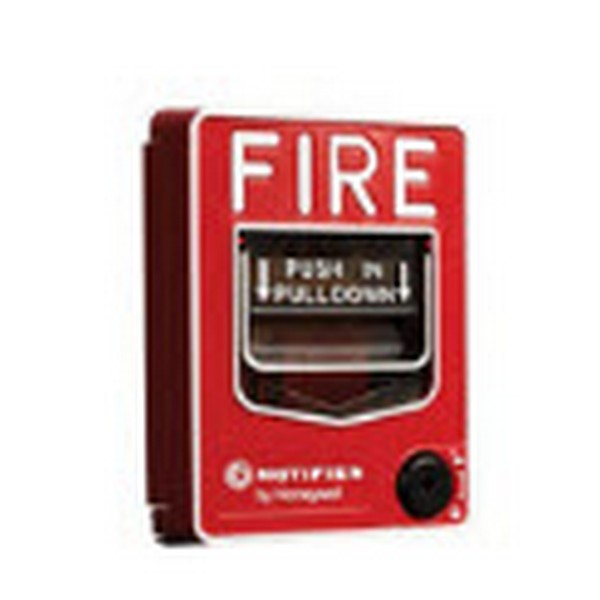

Notifier NBG-12LPS

The Notifier NBG-12LPS is a conventional dual-action manual pull station with pre-signal capability for fire alarm systems. This station combines smooth dual-action operation—pull and twist—with a built-in pre-signal output that allows the system to send an alert before the full alarm condition, providing coordinated emergency response while maintaining protection against accidental activation.

Key Features

• Dual-action design (pull and twist) prevents false alarms from accidental contact or vibration
• Pre-signal output enables phased emergency notification and evacuation control
• Key lock reset mechanism ensures controlled station operation and security
• Braille text markings and tactile indicators provide accessibility for all users
• SPST normally-open contact rated for 10 A @ 120 VAC with gold contacts

Technical Specifications

• Contact Type: SPST normally open
• Operating Voltage: 24 VDC nominal
• Maximum SLC Loop Voltage: 28.0 VDC
• Maximum SLC Standby Current: 375 μA
• Maximum SLC Alarm Current: 5 mA
• Wire Size: 14 to 18 AWG
• Mounting: 4-inch square or double-gang backbox (SB-10) required
• Operating Temperature Range: 32°F to 150°F (0°C to 66°C)

Certifications

• C(UL)US Listed fire alarm station (file S692)
• CSFM approved (file 7150-0028:199)
• ADA compliant accessible design
