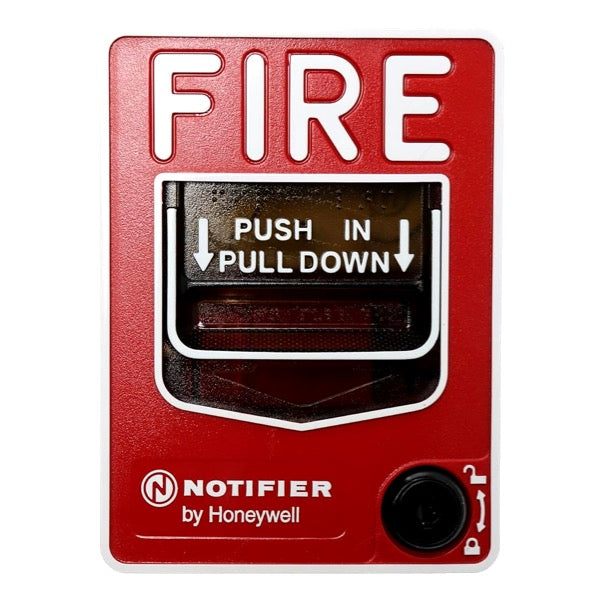

Notifier NBG-12LX Dual-Action Pull Station: Enhanced Fire Alarm Control

The Notifier NBG-12LX is an advanced dual-action pull station, requiring two motions to activate, and it's equipped with an addressable interface compatible with any Notifier intelligent control panel, except for FireWarden series panels and the NSP25 panel. This addressable feature allows the control panel to precisely pinpoint the location of the activated manual station, expediting response times for fire personnel.

Key Features:

• Inspection and Address Setting: Maintenance personnel can open the station for inspection and address setting without triggering an alarm condition, ensuring system integrity.
• Built-in Bicolor LED: A built-in bicolor LED is visible through the station's handle, flashing during normal operation and latching steady red when an alarm is triggered.
• Clear Activation Indication: The handle latches in the down position, and the word "ACTIVATED" appears clearly, indicating that the station has been operated.
• Easy Wiring: Captive screw terminals are wire-ready, supporting easy connection to SLC loops (accepts wire up to 12 AWG/3.25 mm²).
• Mounting Versatility: The station can be surface-mounted (with SB-10 or SB-I/O) or semi-flush mounted, fitting standard single-gang, double-gang, or 4" (10.16 cm) square electrical boxes.
• ADA Compliant: Meets ADAAG controls and operating mechanisms guidelines, including the requirement for a 5 lb. maximum activation force.
• High Visibility: The station boasts high visibility, with an attractive shape and textured finish.
• Key Reset: Includes a key reset feature for ease of use.
• Braille Text: Features Braille text on the station handle for accessibility.
• Optional Trim Ring: An optional trim ring (BG12TR) is available.
• UL Listed: Meets UL 38, Standard for Manually Actuated Signaling Boxes.
• Loop Protocol: Supports up to 99 NBG-12LX stations per loop on CLIP protocol loops and up to 159 stations on FlashScan® protocol loops.
• Dual-Color LED: On FlashScan® systems, a dual-color LED blinks green to indicate normal operation.

Construction:

• Durable Material: Shell, door, and handle are constructed from robust polycarbonate material with a textured finish.

Specifications:

• Shipping Weight: 9.6 oz. (272.15 g)
• Normal Operating Voltage: 24 VDC
• Maximum SLC Loop Voltage: 28.0 VDC
• Maximum SLC Standby Current: 375 A
• Maximum SLC Alarm Current: 5 mA
• Temperature Range: 32°F to 120°F (0°C to 49°C)
• Relative Humidity: 10% to 93% (non-condensing)
• Suitable for indoor use in a dry location
