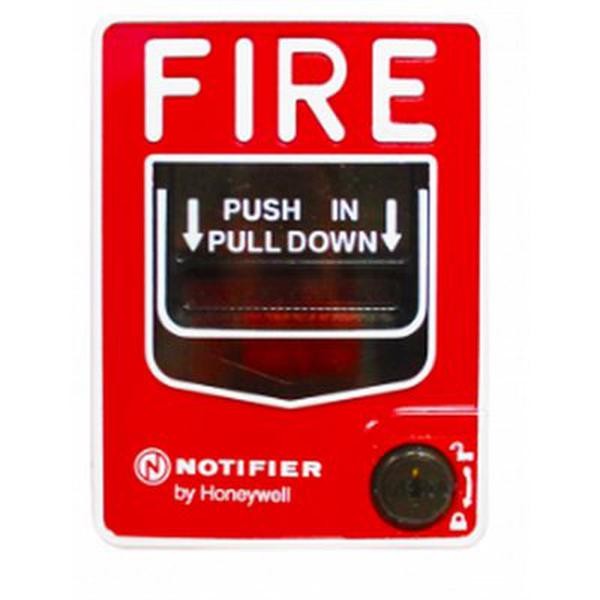

Notifier NBG-12S

The Notifier NBG-12S is a conventional single-action manual pull station designed for simplicity and reliability in fire alarm systems. This non-coded station requires only one action—push in and pull down on the handle—to activate the normally-open alarm switch, making it ideal for emergency personnel and the general public to quickly signal fire detection to the alarm control panel.

Key Features

• Single-action operation (push and pull) for intuitive emergency activation
• Pigtail connections allow flexible wiring configurations with field wiring up to 12 AWG
• Non-coded conventional device for simple integration with standard fire alarm panels
• Clear "ACTIVATED" indicator displays in bright yellow when station has been operated
• Textured finger-hold area with Braille text and directional arrows for accessibility

Technical Specifications

• Contact Type: SPST normally open switch
• Activation: Push in, then pull down on handle to initiate alarm signal
• Wiring: Pigtail connections; accepts field wiring up to 12 AWG (3.1 mm²)
• Reset: Insert hex key, twist one quarter-turn, open front cover
• Pull Force: ADA-compliant 5 lb. maximum pull force requirement
• Operating Temperature Range: 32°F to 120°F (0°C to 49°C)
• Shipping Weight: 9.6 ounces

Certifications

• UL 38 Listed for manually actuated signaling boxes
• ADA compliant accessible design
• Compatible with Notifier conventional fire alarm control panels and transponders
