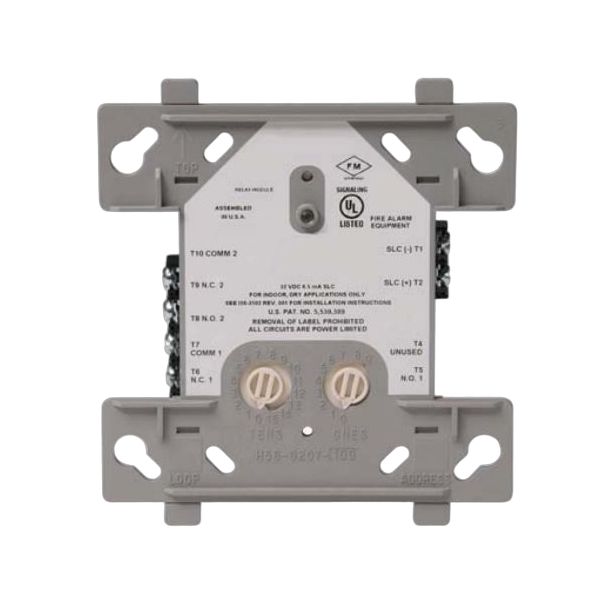

Notifier NC-100-RC

The Notifier NC-100 is an addressable control module that gives NOTIFIER FireWarden Series intelligent fire alarm control panels a supervised Class B (Style Y) or Class A (Style Z) circuit for notification appliances such as horns and strobes, with built-in type identification that automatically reports the module to the panel.

Key Features

• Addressable — can be activated individually or in a zone/area group, either manually or through panel programming
• Built-in type identification automatically identifies the module to the control panel
• Internal circuitry powered directly from the two-wire SLC loop, no separate power wiring required
• Status LED blinks when communicating and lights steadily when activated, visible through a wide viewing angle

Technical Specifications

• Circuit Type: Supervised Class B (Style Y) or Class A (Style Z)
• Application: Switches 24-volt NAC power for notification appliances
• Power: Powered directly from the two-wire SLC loop
• Wiring: SEMS screws with clamping plates

Certifications

• UL/ULC Listed (file S635)
• FM Approved
• CSFM Approved (file 7300-0028:230)
• MEA Approved (file 72-01-E Vol. 2)
