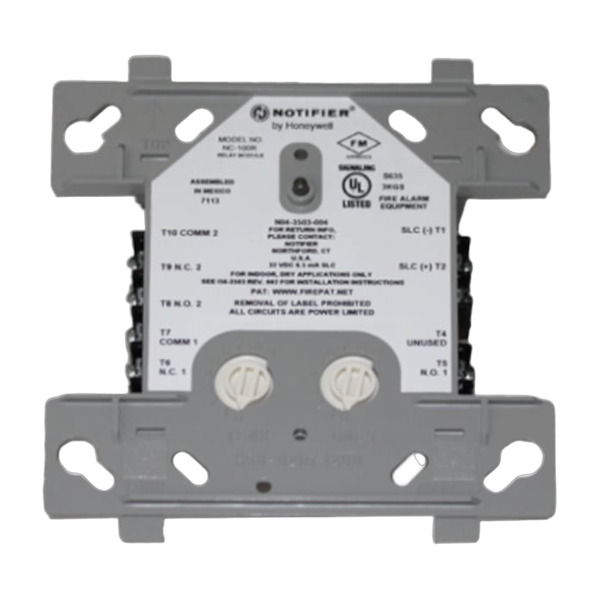

Notifier NC-100R-RC

Key Features

• Intelligent addressable relay module with two Form-C (SPDT) dry-contact outputs
• Controls auxiliary devices: fans, dampers, door holders, and control equipment
• Selective addressable activation for manual or programmed control
• Integral LED indicator (green blink = communication, steady red = activated)
• Internal circuitry and relay powered directly from SLC loop

Technical Specifications

• Power: 15–32 VDC from signaling line circuit loop
• Maximum Current: 6.5 mA with LED on; 230–255 µA in poll mode
• Contact Rating: Form-C dry contacts for relay switching
• Addressing: 01–99 with FireWarden-100-2(C); 01–50 with FireWarden-50(C)
• Mounting: Standard 4-inch electrical box installation
• High Noise Immunity: Resistant to electromagnetic and RF interference

Certifications

• UL Listed for intelligent relay modules in fire alarm systems
• Compliant with NFPA 72 fire alarm code requirements
