Notifier NFS-320-RC
Load video:
Notifier NFS-320-RC
Notifier NFS-320-RC

Notifier NFS-320-RC

Notifier NFS-320-RC

RECON-Control Panel Fire Alarm Intel Fire

Vendor: Notifier

Type: Fire Alarm > Panels

SKU: NF-F1P1-7996-RC

$2,603.15
$2,603.15
Shipping calculated at checkout.
Requires reconditioning, ships in 14–21 days.

Core Charge $450

Eligible for credit if core is returned within 30 days of order A core charge is a fee you pay when buying a part, that will be returned to you when you send the old part you’re replacing back. In other words, it’s a monetary incentive to get your old part so that we can recondition and continue to offer this part to future customers.

Only 1 left!

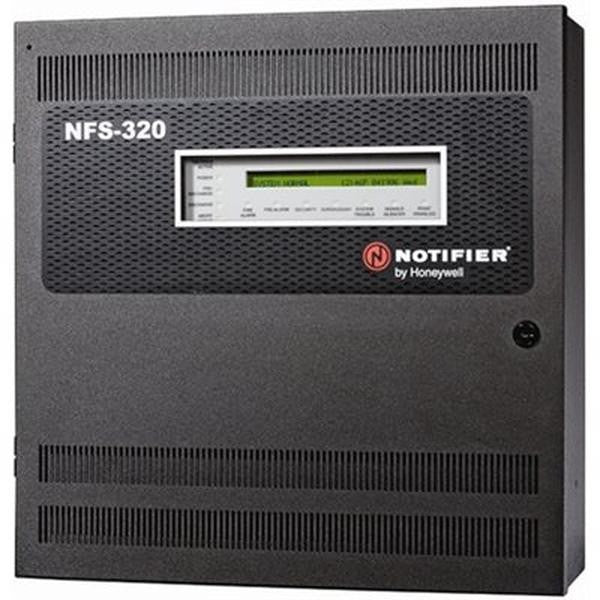

Intelligent Addressable Fire Alarm Control Panel (Reconditioned)

Key Features

  • 318 addressable device capacity (up to 159 detectors + 159 modules)


    • Single supervised addressable SLC loop with FlashScan protocol


      • Six-amp power supply supporting system and notification appliances


        • Four built-in Class A/B Notification Appliance Circuits (NAC)


          • Integrated alarm, trouble, and supervisory relays


            • Selectable strobe synchronization: System Sensor, Wheelock, or Gentex


              • Backlit 80-character display with system and programming keypad


                • Technical Specifications

                • Addressable capacity: 318 devices (159 detectors + 159 modules maximum)


                  • Input power: 120 VAC, 50/60 Hz, 5.0 A


                    • Power supply output: 6.0 A in alarm


                      • SLC loop: Single supervised addressable loop


                        • NAC circuits: 4 built-in (1.5 A each), expandable


                          • Regulated 24V outputs: 1.25 A (resettable), 1.25 A + 0.50 A (non-resettable)


                            • Unregulated 5V: 0.15 A (non-resettable)


                              • Display: 80-character backlit LCD


                                • Backbox dimensions: 18.12″ W × 18.12″ H × 5.81″ D


                                  • Shipping weight (no batteries): 36.15 lb


                                    • Certifications

                                    • UL Listed to UL 864


                                      • NFPA 72 compliant


                                        • FM approved
Data Sheet
