NFW2-100RB-RC - Fire Alarm Control Panel - Protegis Fire & Safety

Notifier NFW2-100RB-RC

Notifier NFW2-100RB-RC

RECON-Main Board For NFW2-100

Vendor: Notifier

Type: Fire Alarm > Boards

SKU: NF-F1P1-7834-RC

$1,917.99
$1,917.99
Shipping calculated at checkout.
Requires reconditioning, ships in 14–21 days.

Core Charge $1450

Eligible for credit if core is returned within 30 days of order A core charge is a fee you pay when buying a part, that will be returned to you when you send the old part you’re replacing back. In other words, it’s a monetary incentive to get your old part so that we can recondition and continue to offer this part to future customers.

Only 1 left!

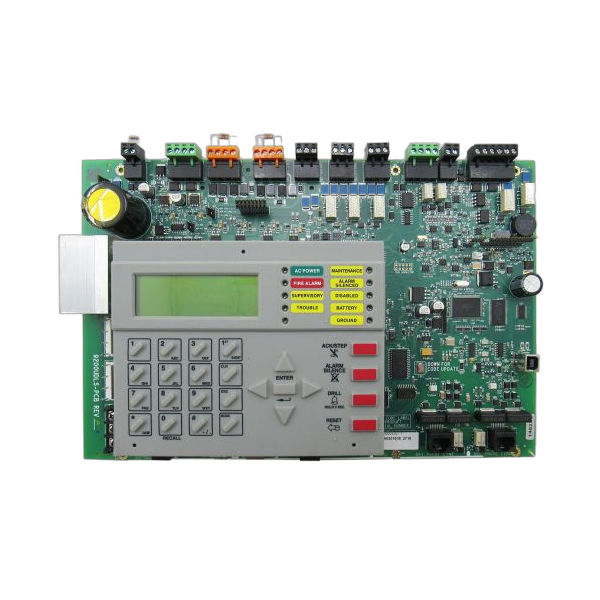

The Notifier NFW2-100RB is the bare replacement main board for the Notifier FireWarden-100-2 (NFW2-100) fire alarm control panel, supplied without a cabinet for technicians replacing a failed board in an existing enclosure. The NFW2-100 combines a fire alarm control panel and a digital alarm communicator/transmitter (DACT) on a single circuit board, and the "R" designation marks the red-backbox electrical configuration used across the FireWarden-100-2 line.

Key Features

  • Combination FACP and built-in digital alarm communicator/transmitter (DACT) on one board
  • Supplied as a bare board for direct replacement inside an existing NFW2-100 cabinet
  • Two programmable Form-C relay outputs

Technical Specifications

  • One signaling line circuit (SLC) loop
  • Class A/Class B (Style Y) notification appliance circuits (NACs), 2.5A maximum signaling current per circuit
  • Style Y (Class B) NAC end-of-line resistor: 4.7K ohm, 1/2 watt, UL-listed (P/N 71252)
  • Compatible cabinet/backbox: FireWarden-100-2 red backbox enclosure

Certifications

  • UL Listed fire alarm control panel board
