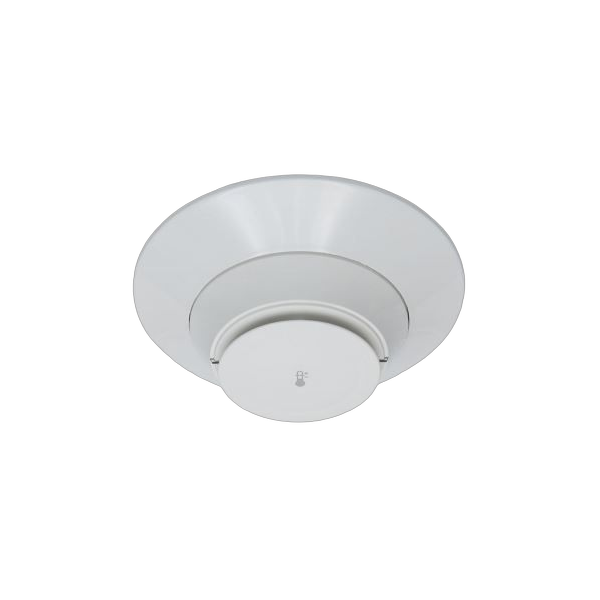

Notifier NH-200R

Key Features

• Low-profile intelligent rate-of-rise thermal heat detector
• Fast-response thermistor sensing circuit
• 360° field of view with dual LEDs
• Remote test capability from fire alarm panel
• Rotary decimal addressing for flexible configuration
• Magnet-activated functional test switch
• FireWarden series compatible

Technical Specifications

• Detection Type: Rate-of-rise thermal detector
• Rate-of-Rise: 15°F (8.3°C) per minute detection
• Operating Temperature: -4°F to 100°F (-20°C to 38°C)
• Power: 15-32 VDC from SLC; 200 μA standby @ 24VDC; 4.5 mA max ON
• Addressing: Rotary decimal switches for device addressing
• LED Indication: Red blink normal, steady red in alarm
• Features: 360° visibility, remote test, magnet test switch
• Base: B300-6 detector base included
• Compatible: FireWarden NFW-50, NFW2-100, ONYX series panels

Certifications

• UL 268 compliant
• FlashScan protocol certified
• Remote test capability certified
