Notifier NH-200R-IV
Notifier NH-200R-IV
In stock!

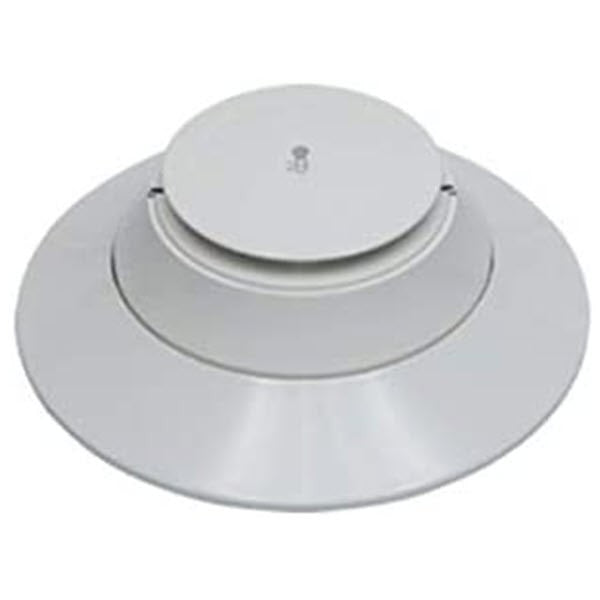

The Notifier NH-200R-IV is a low-profile, intelligent rate-of-rise heat detector in ivory, responding to a temperature rise of 15°F (8.3°C) per minute, and ships with its matching B300-6-IV detector base included rather than sold separately. It addresses on the SLC loop using rotary decimal switches and supports remote functional testing from the panel via an external magnet, communicating over either FlashScan or CLIP protocol depending on the connected Notifier FireWarden series panel.
Key Features
- Rate-of-rise thermal detection at 15°F/min
- Ships with matching B300-6-IV base included
- Rotary decimal switch addressing (Point ID)
- Remote test capability via external magnet
- Two-LED status indication, latching steady red in alarm
Technical Specifications
- Protocol: FlashScan or CLIP
- SLC Voltage: 15-32 VDC
- Standby Current: 200µA @ 24VDC
- Alarm Current: 4.5mA max @ 24VDC
- Compatible Panels: Notifier FireWarden series
Certifications
- UL Listed intelligent heat detector
