Condition: New

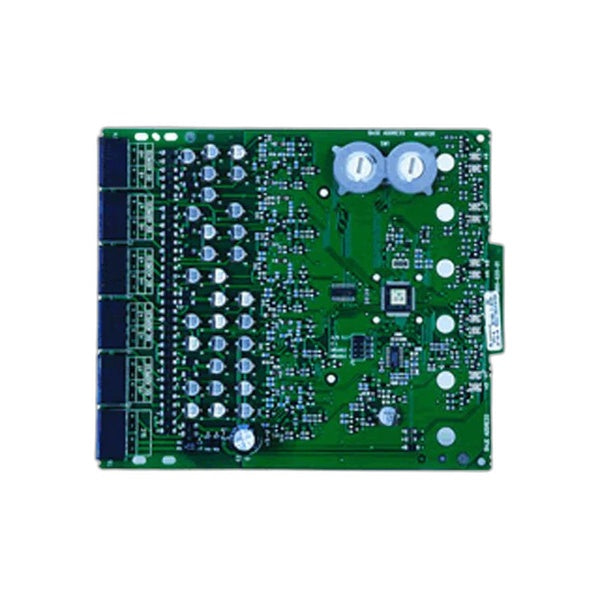

Notifier NMM-100-10
Notifier NMM-100-10
Module Addressable 10 Input Multi-Mod
Regular price
$755.99
Sale price
$755.99
Regular price
Shipping calculated at checkout.
Only 3 left!
Key Features
- Ten-input monitor module with addressable circuit supervision
- Ten Class B or five Class A initiating device circuits
- Interface for normally open contact devices (pull stations, flow switches, security contacts)
- Panel-controlled green LED indicators for zone status
- Rotary address switches for field configuration
Technical Specifications
- Circuit Capacity: Ten Style B (Class B) or five Style D (Class A) initiating device circuits
- Power: 15–32 VDC from signaling line circuit
- Addressing: First address 01–90; remaining nine auto-assigned to next higher addresses
- Maximum SLC Resistance: 40–50 ohms (panel dependent)
- Maximum IDC Voltage: 10.2 VDC; Maximum IDC Current: 240 µA
- Terminal Blocks: Removable 12 AWG (3.31 mm²) to 18 AWG (0.821 mm²) plug-in blocks
Certifications
- UL Listed (S635) for NMM-100-10
- ULC Listed for NMM-100-10A variant
- Compliant with NFPA 72 fire alarm standards
