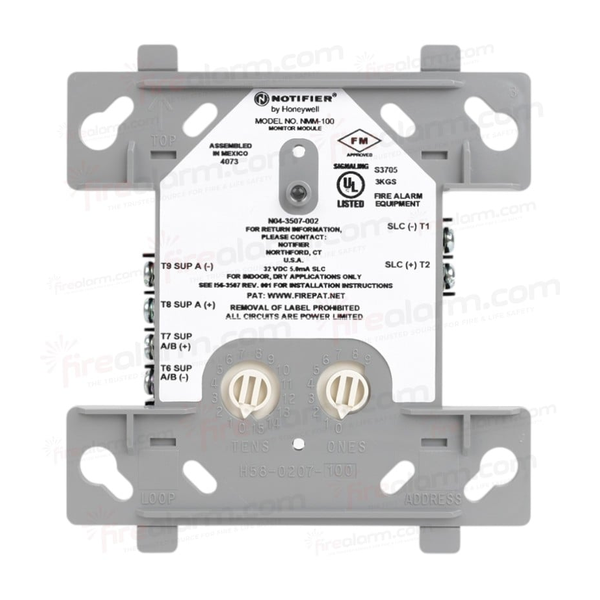

Notifier NMM-100-RC

Key Features

• Intelligent monitor module for supervised circuit supervision
• Supports Class A (Style D) or Class B (Style B) input circuits
• Direct-dial rotary switch addressing
• Built-in type identification for automatic FACP recognition
• High EMF/RFI noise immunity
• Programmable through addressable fire alarm panel
• Powered directly by SLC loop

Technical Specifications

• Function: Monitors normally open contact input devices
• Circuit Type: Class A (Style D) or Class B (Style B)
• Power: 15-32 VDC from SLC; 5.0 mA max (LED on); 375 μA average
• Addressing: Rotary decimal switches for direct-dial configuration
• Inputs: Dry-contact supervision (heat detectors, pull stations, etc.)
• LED Control: Panel-controlled status indication
• Noise Immunity: High EMF/RFI immunity for reliable operation
• Protocol: FlashScan and CLIP compatible

Certifications

• UL 864 certified
• NFPA 72 compliant
• Class A/B initiating circuit certified
