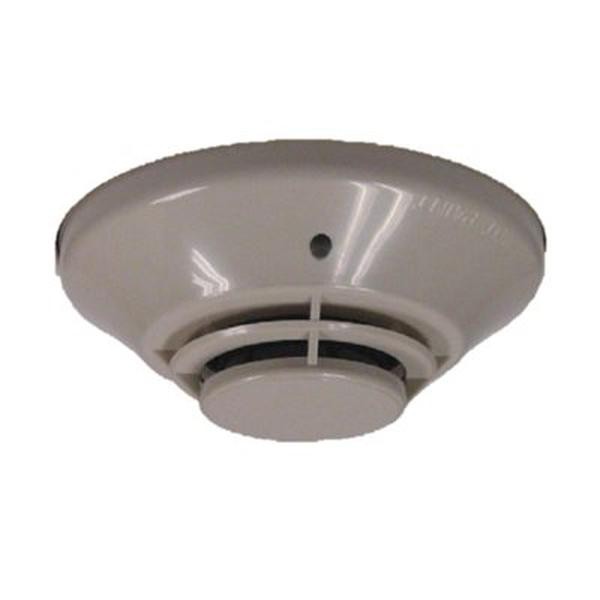

Notifier NP-100-RC

Key Features

• Remote-test capable addressable photoelectric smoke detector
• Dual-chamber single-source optical design
• Compatible with FireWarden and Spartan addressable panels
• Rotary decimal addressing for flexible configuration
• Quick response to broad range of smoke conditions
• Two integral LEDs for local status indication
• DNRA/DNRW duct detector housing compatible

Technical Specifications

• Detection Type: Photoelectric, dual-chamber design
• Voltage: 15-32 VDC (peak)
• Current: 300 μA standby @ 24VDC; 6.5 mA latched ON
• Operating Air Velocity: Maximum 4,000 ft/min
• Physical: 2.1" height; base determines diameter
• Addressing: Rotary decimal switches
• LED Indication: Blink normal, latch ON during alarm
• Compatible Panels: FireWarden-100-2, FireWarden-50, NSP-25
• Protocol: SLC two-wire direct communication

Certifications

• UL Listed
• ULC Listed (Canada)
• FM Approved
• CSFM Listed
• MEA Approved
