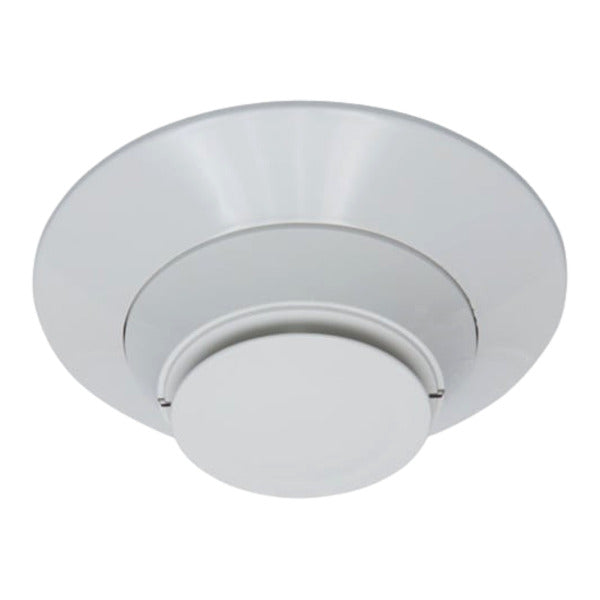

Notifier NP-200T

Key Features

• Intelligent addressable photoelectric smoke detector with integrated heat sensor
• Combines smoke detection with 135°F (57°C) fixed-temperature heat element
• Factory preset 1.5% nominal sensitivity for reliable detection
• Low-profile plug-in design with dual LED indicators
• Rotary decimal switches for precise Point ID addressing

Technical Specifications

• Detection Type: Photoelectric smoke + Fixed temperature heat (135°F/57°C)
• Power: 15-32 VDC from SLC loop
• Sensitivity: Factory preset at 1.5% nominal for panel alarm threshold
• Addressing: Rotary decimal switches for Point ID configuration
• LED Indicators: Dual LEDs for visible sensor indication
• Thermal Element: Activates at 135°F (57°C)
• Included: B300-6 detector base
• Compatible Panels: Notifier FireWarden Series (FlashScan protocol)
• Direct Replacement: NP-200T is direct replacement for NP-100 Series

Certifications

• UL Listed smoke and heat detector
• NFPA 72 compliant
