Notifier SIB-2048A-RC
Notifier SIB-2048A-RC
Only 4 left!

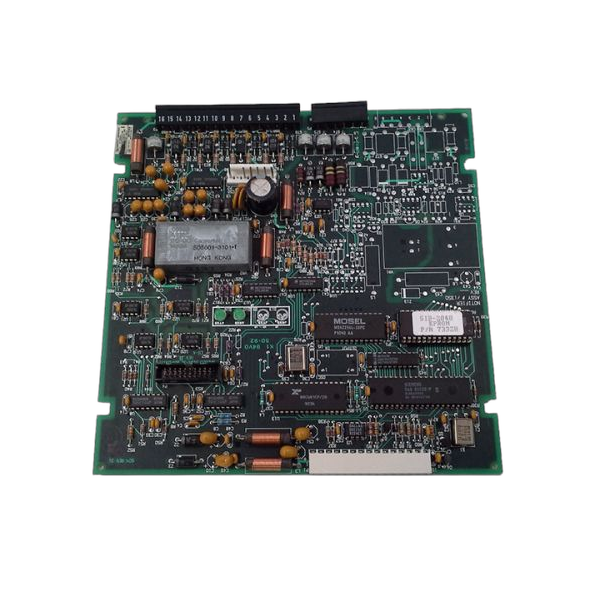

The Notifier SIB-2048A is a serial interface board used with Notifier's AM2020/AFP1010 intelligent addressable fire alarm control panels to add external serial communication ports beyond the panel's built-in connections. It carries dual EIA-232 ports (2400 baud, ASCII) for CRT terminals, printers, and other EDP-listed equipment, plus an EIA-485 port (20K baud, ASCII) that links ASC annunciators, AMG audio systems, and Notifier network interface boards over runs of up to 6,000 feet.
Key Features
- Dual EIA-232 (2400 baud) ports for CRT/EDP-listed device and printer connections
- EIA-485 (20K baud) port for ASC annunciators, AMG audio systems, and Notifier network interface boards
- Full optical isolation on the EIA-232 interfaces to prevent ground-fault problems with connected EDP equipment
- Plug-in terminal blocks for simplified field wiring and servicing
Technical Specifications
- Compatibility: Notifier AM2020 / AFP1010 intelligent addressable fire alarm control panels
- EIA-485 circuit run: up to 6,000 feet
- Board dimensions: approximately 8.50" x 8.00" x 1.00" (assembled)
Certifications
- UL Listed serial interface board for use on UL-listed Notifier fire alarm systems
