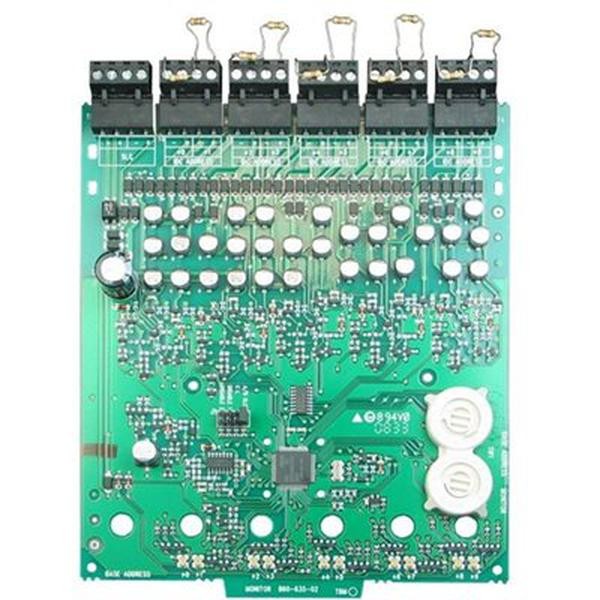

Notifier XP10-M

Key Features

• Ten supervised input channels in single SLC address
• Green LED indicators per input with panel-controlled modes
• Efficient SLC loop usage with auto-addressing
• Low power consumption in standby and alarm states
• Removable terminal blocks for 12-18 AWG wire
• Multi-enclosure compatibility
• UL 864 standard certified

Technical Specifications

• Input Circuits: Ten Class B or five Class A initiating device circuits
• Addressing: First address user-programmable (01-150); remaining addresses auto-assigned
• LED Indicators: Green LED per input with selectable control (blink, latch, off)
• Power Consumption: 3.75 mA standby @ 24V; 55 mA full alarm state
• Operating Temperature: 32°F to 120°F (0°C to 49°C) UL; -10°C to +55°C EN54
• Humidity: 10% to 85% noncondensing (UL); 10% to 93% noncondensing (EN54)
• Terminal Blocks: Removable, accepts 12-18 AWG wire
• Enclosure Options: CHS-6, BB-25, BB-XP, CAB-series compatible

Certifications

• UL 864 9th Edition
• NFPA 72 compliant
• EN 54 compatible
