Notifier XP6-C-RC
Notifier XP6-C-RC

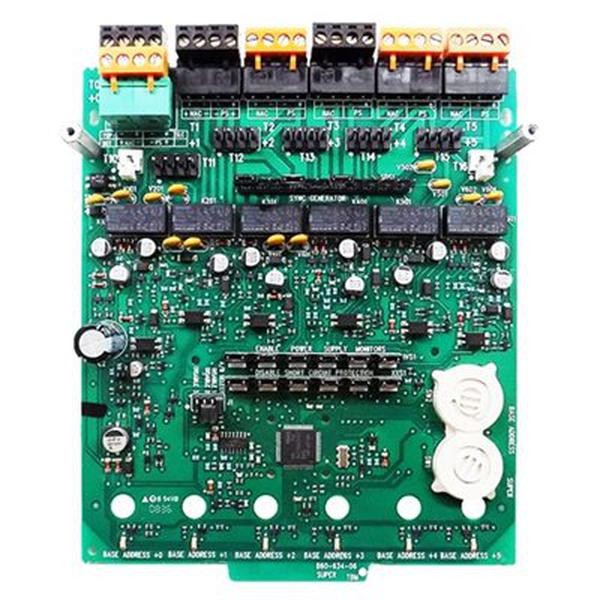

RECON-XP6 Transponder Control Module 6Circuits
Regular price
$1,368.99
Sale price
$1,368.99
Regular price
Shipping calculated at checkout.
Core Charge $100
Eligible for credit if core is returned within 30 days of order
A core charge is a fee you pay when buying a part, that will be returned to you when you send the old part you’re replacing back. In other words, it’s a monetary incentive to get your old part so that we can recondition and continue to offer this part to future customers.
Out of stock; call for lead time
Key Features
- Six addressable supervised control circuits with Style B (Class B) or Style D (Class A) output options
- Intelligent alarm system integration with supervised wiring monitoring
- Six addressable outputs that function as notification appliance/speaker/telephone circuits
- Rotary address switches for field configuration (addresses 01-154)
- LED indicator provides visual status feedback during operation
Technical Specifications
- Power: 15–32 VDC from signaling line circuit
- Stand-by Current: 2.65 mA @ 24V
- Alarm Current: 35 mA (all relays and LEDs active)
- Terminal Blocks: Removable 12 AWG (3.31 mm²) to 18 AWG (0.821 mm²) plug-in blocks
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Automatic Addressing: Remaining five circuits auto-assigned to next higher addresses
Certifications
- UL Listed and ULC Listed for intelligent fire alarm systems
- Compliant with NFPA 72 fire alarm code requirements
