Condition: New

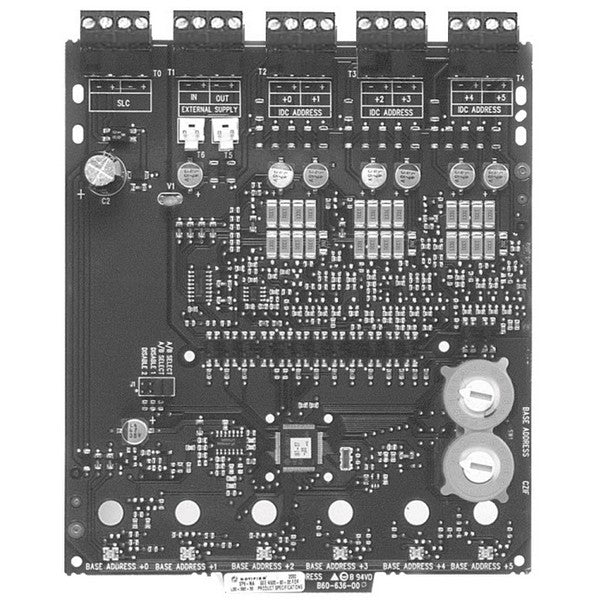

Notifier XP6-MA
Notifier XP6-MA
Module Monitor XP6 Transponder 2-Wire Detector
Regular price
$850.99
Sale price
$850.99
Regular price
Shipping calculated at checkout.
Out of stock; call for lead time
Key Features
- Six-zone addressable interface module for conventional detection
- Supports Class B or Class A circuit configurations
- Automatic addressing for remaining 5 zones
- Flexible mounting options across multiple cabinet types
- Field-selectable Class operation (shunt removal)
Technical Specifications
- External Supply Voltage: DC 18-28 volts (power-limited)
- Ripple Voltage: 0.1 Vrms maximum
- External Supply Current: 90 mA maximum per address in alarm; 540 mA max for all six addresses
- SLC Wiring Resistance: 40 or 50 ohms (panel dependent)
- IDC Wiring Resistance: Maximum 25 ohms
- Wire Gauge: 12-18 AWG (3.1-0.78 mm²)
- Class B Configuration: Shipped default; Class A requires shunt removal
Certifications
- UL Listed S635 (XP6-MA)
- ULC Listed S635 (XP6-MAA)
