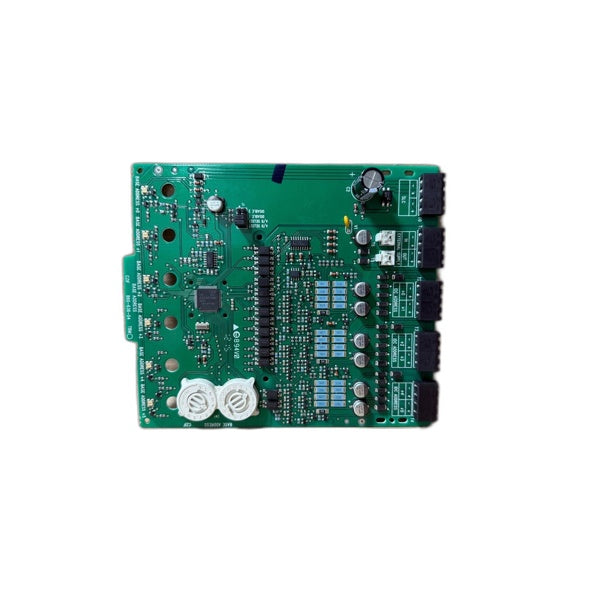

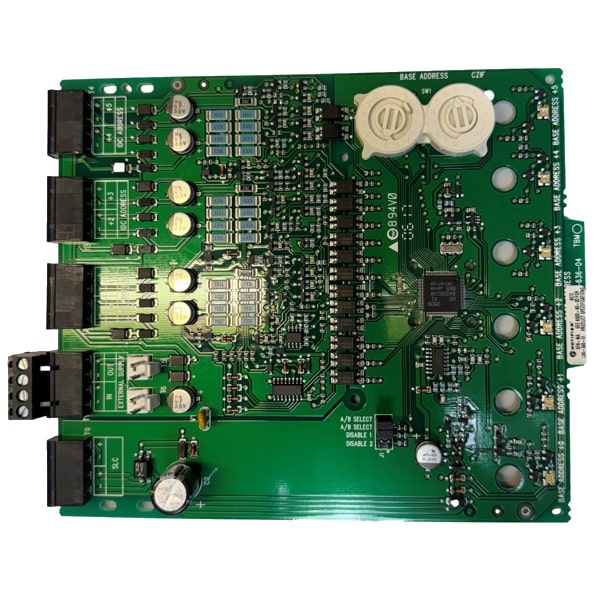

Notifier XP6-MA-RC
Notifier XP6-MA-RC
RECON-XP6 Transponder 2-Wire Detector Monitor
Regular price
$519.19
Sale price
$519.19
Regular price
Shipping calculated at checkout.
Core Charge $100
Eligible for credit if core is returned within 30 days of order
A core charge is a fee you pay when buying a part, that will be returned to you when you send the old part you’re replacing back. In other words, it’s a monetary incentive to get your old part so that we can recondition and continue to offer this part to future customers.
Out of stock; call for lead time
Key Features
- Six-zone interface module for conventional detection zones
- Bridges conventional two-wire detection zones to intelligent fire alarm systems
- Six addressable initiating device circuits (Class B or Class A options)
- FlashScan and CLIP protocol compatibility
- Panel-controlled bicolor LED indicators with multiple states
Technical Specifications
- Zone Capacity: Six Class B or three Class A initiating device circuits
- Power: SLC standby 2.20 mA max; external 18–28 VDC power-limited supply (90 mA max per address in alarm)
- Physical: 6.8" H × 5.8" W × 1.25" D
- Terminal Blocks: Removable 12 AWG (3.1 mm²) to 18 AWG (0.78 mm²) plug-in blocks
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Humidity: 10–85% noncondensing
Certifications
- UL Listed for intelligent fire alarm zone interface modules
- Compliant with NFPA 72 fire alarm code
