Notifier XP6-R
Notifier XP6-R
Out of stock; call for lead time

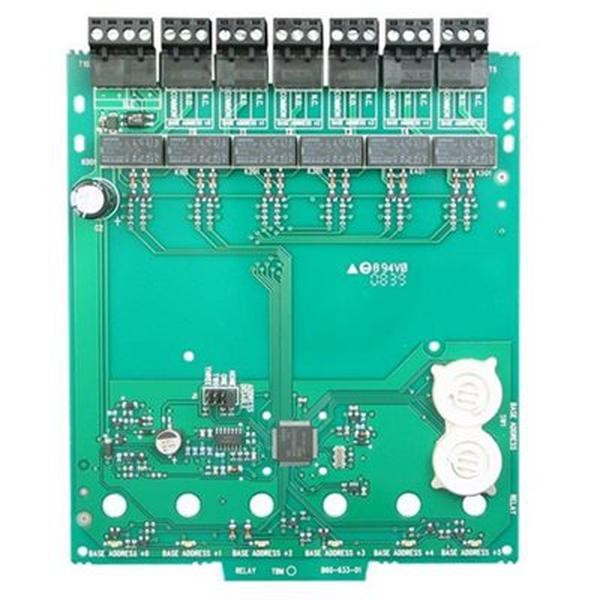

The Notifier XP6-R is a six-relay control module for Notifier's intelligent addressable ONYX fire alarm systems, providing six isolated Form-C relay outputs that can be individually wired for normally-open or normally-closed operation. It's commonly used for HVAC shutdown, door holder release, and elevator recall functions tied to a fire alarm event, giving each relay its own panel-controlled status LED for quick field diagnostics.
Key Features
- Six isolated dry Form-C relay contacts, individually wired for NO or NC operation
- Panel-controlled green LED indicator per relay/module address, capable of blinking, latching on, or latching off
- Automatic address assignment: additional modules take the next five higher addresses after the first
- Supports disabling up to three unused modules
- Ideal for HVAC shutdown, door holder release, and elevator recall on ONYX systems
Technical Specifications
- Addressing range: 01 to 154 for the first module
- Standby current: 1.45 mA; Alarm current: 32 mA
- Operating temperature: 32°F to 120°F (0°C to 49°C)
- Dimensions: 6.8" H x 5.8" W x 1.0" D
