Potter Electric Signal | AFC-100
FACP Addressable 100 Point

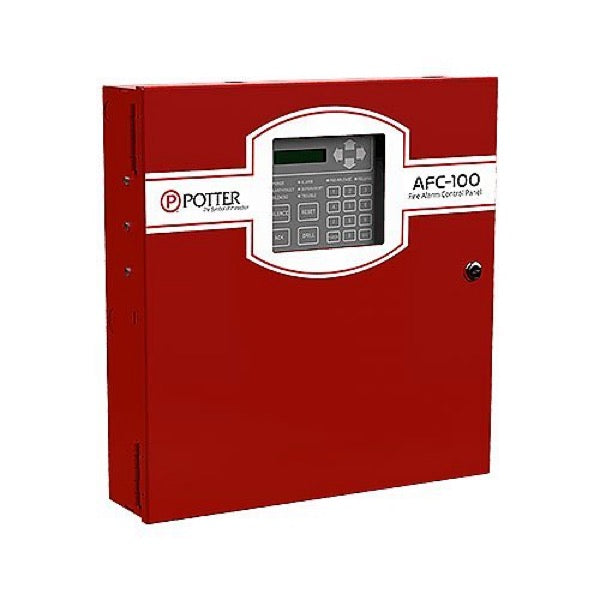

Potter Electric Signal AFC-100 Fire Alarm Control Panel
The Potter AFC-100 is an analog/addressable fire alarm control panel designed to manage up to 100 addressable devices, providing flexibility and reliability for various fire protection applications.
Key Features:
• Address Capacity: Supports up to 100 addressable devices, including smoke detectors, heat detectors, and modules.
• Notification Appliance Circuits (NACs): Equipped with two NACs, each rated at 3 amps, with programmable options for steady signal, strobe synchronization, constant power, door holder power, or releasing.
• Input/Output Circuits: Includes two I/O circuits rated at 1 amp each, offering additional system flexibility.
• Power Supply: Features a 5-amp power supply, expandable up to 310 amps using PSN-1000 series intelligent power supplies.
• Strobe Synchronization: Provides synchronization for Gentex, AMSECO, System Sensor, and Cooper/Wheelock strobes, with Quadrasync technology allowing multiple brands to flash in unison.
• System Monitoring: Offers a 4,000-event history buffer and supports up to 99 software zones for detailed system management.
