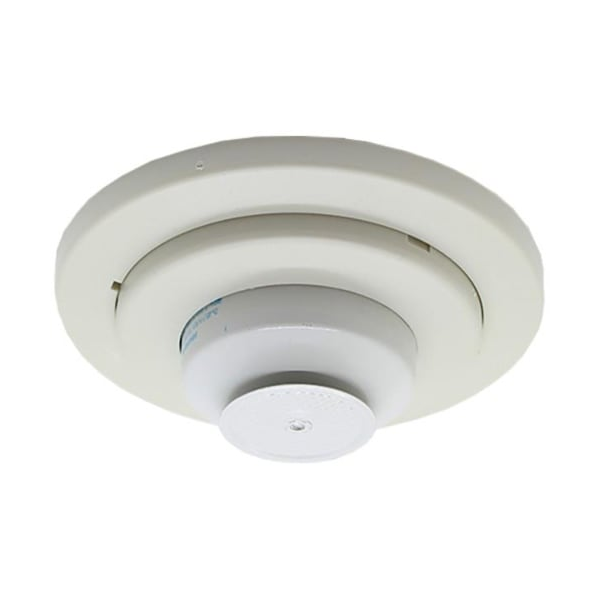

Potter Electric Signal CR-135CW

Key Features

• Combination fixed-temperature and rate-of-rise heat detector
• Dual-function detection for superior sensitivity
• White plastic housing with ceiling or wall mounting
• 70-foot (21-meter) detection range
• Restorable rate-of-rise with non-restorable fixed temperature

Technical Specifications

• Fixed Temperature: 135°F (57°C)
• Rate-of-Rise Threshold: 100°F (37.8°C) with 15°F/minute rise rate
• Detection Range: 70 feet (21 meters)
• Contact Type: Normally Closed (NC)
• Contact Ratings: 3A at 125VAC, 1A at 28VDC, 0.3A at 125VDC, 0.1A at 250VDC
• Physical: 5.25" × 2" × 0.41 lbs (0.19 kg)
• Housing Material: White plastic
• Temperature Range: Suitable for -4°F to 140°F environments

Certifications

• UL Listed heat detector
• Compliant with fire alarm standards
