Potter Electric Signal EOLD
Potter Electric Signal EOLD
Resistor End Of Line And Diode Assy
Regular price
$9.99
Sale price
$9.99
Regular price
Shipping calculated at checkout.
Only 4 left!

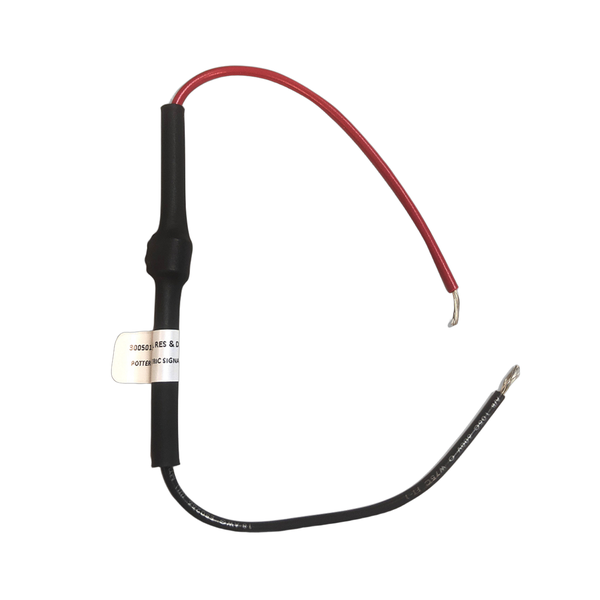

The Potter EOLD is an end-of-line diode/resistor assembly used to supervise releasing circuit solenoids and electric actuators installed in remote locations, per the fire control panel's installation requirements. Wired in at the end of the circuit, its diode and resistor combination lets the panel continuously monitor the circuit for opens, shorts, and grounds while it waits to fire the actuator.
Key Features
- Supervises releasing circuit solenoids and electric actuators at remote locations
- Combination diode/resistor assembly wired per fire panel manufacturer instructions
- Color-coded leads (red and black) simplify correct polarity installation
Technical Specifications
- Resistor: 5.1K Ω, 5% tolerance
- Diode: Type 6A1, rated 100V / 6A
- Overall Length: 12 in.
- Wire: #18 AWG stranded, red and black
