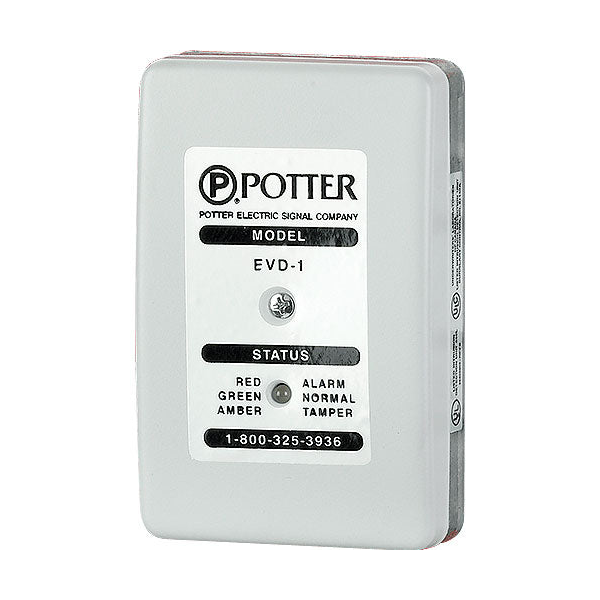

Potter Electric Signal EVD-1C

The Potter EVD-1C Safe Pak is a UL Listed electronic vibration detector kit built for primary protection of safes, vaults, and ATMs, and as supplementary protection on file cabinets, display cases, walls, and ceilings. The kit pairs Potter's EVD-1 detector with a High Security Safe Contact (HSC), using piezo sensor technology to pick up drilling, cutting, or forced-entry vibration and report it to a UL listed control unit.

Key Features

• Complete kit: EVD-1 electronic vibration detector plus HSC High Security Safe Contact
• Piezo sensor technology for reliable detection of tampering and forced-entry vibration
• Stand-alone system designed to connect to any UL listed control unit
• Suited for safes, vaults, ATMs, and supplementary protection of interior assets

Technical Specifications

• Power input: 9.0-16.0 VDC, 12 VDC nominal, max 0.1V ripple
• Current draw at 12 VDC: 26 mA standby, 24 mA alarm, 34 mA tamper
• Dimensions: 5.10"H x 3.26"W x 1.20"D; weight 0.64 lbs
• Enclosure: die-cast aluminum base with 22-gauge stamped steel cover

Certifications

• UL Listed
