Potter Electric Signal HS-24WR-WP

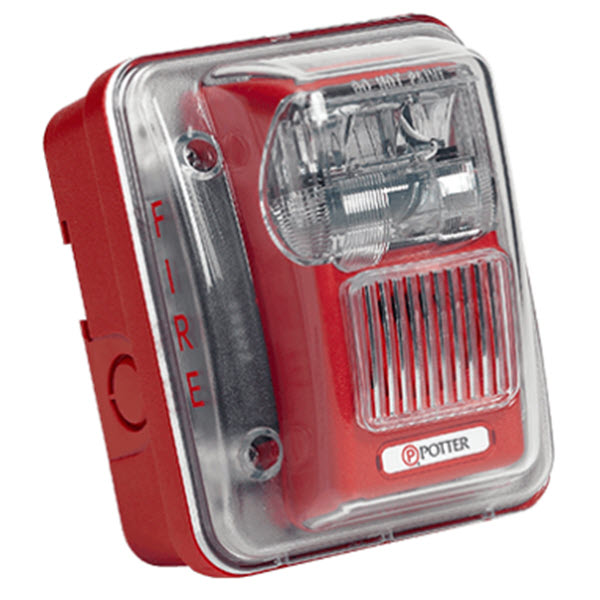

Potter Electric Signal HS-24WR-WP Weatherproof Horn Strobe

Key Features

• Weatherproof wall-mounted horn/strobe for outdoor fire alarm applications
• Field-selectable candela options: 15, 30, 60, 75, and 110 candela
• Continuous or sync temporal three tone in 2400Hz with mechanical, chime, and whoop tones
• Red faceplate with high-quality Lexan enclosure for weather protection
• Super-Slide mounting feature for easy field supervision testing
• 70/82 dB audible output for outdoor coverage

Technical Specifications

• Voltage: 24 Volt DC
• Sound Output: 70/82 dB
• Candela Selection: 15, 30, 60, 75, 110 candela (field-selectable)
• Dimensions: 4.75" W x 4.18" D x 5.75" H
• Mounting: 4" mounting plate with Super-Slide feature
• Housing: Lexan material for weather protection
• Minimum Flash Rate: 1Hz regardless of input voltage

Certifications

• ANSI/UL 464 Listed
• ANSI/UL 1971 Listed
• NFPA 72 Compliant
• Approved for outdoor use
