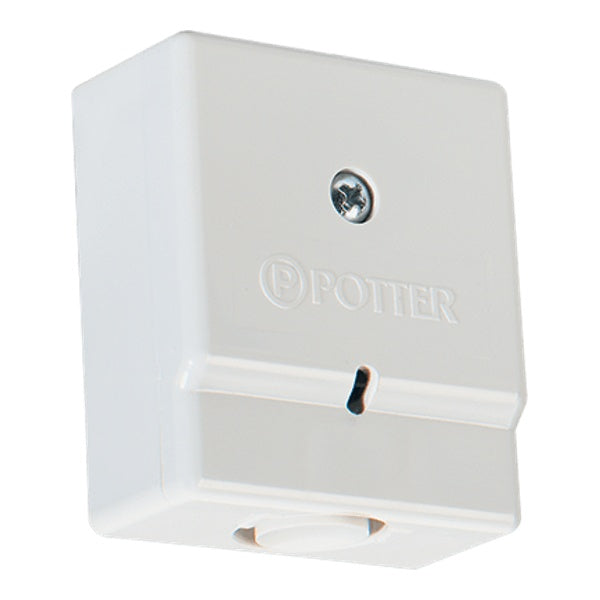

Potter Electric Signal HUB-M

Key Features

• Single-button hold-up switch for bank and retail panic situations
• Both latching and momentary DPDT (double-pole double-throw) contacts
• Discreet design suitable for point-of-sale or teller stations
• Activates surveillance cameras or other security applications
• Compact ABS plastic enclosure
• UL and ULC listed for reliability

Technical Specifications

• Contact Type: Latching and momentary DPDT
• Switch Rating: 3 Amps @ 28V DC/AC, 0.05 Amp @ 125V DC Resistive
• Dimensions: 2"W x 2-5/16"L x 1"H
• Weight: 1.5 oz
• Operating Temperature: 32°F to 140°F
• Maximum Humidity: 85%
• Enclosure Material: ABS Plastic

Certifications

• UL Listed
• ULC Listed
