Potter Electric Signal LED-16F
Potter Electric Signal LED-16F
Only 3 left!

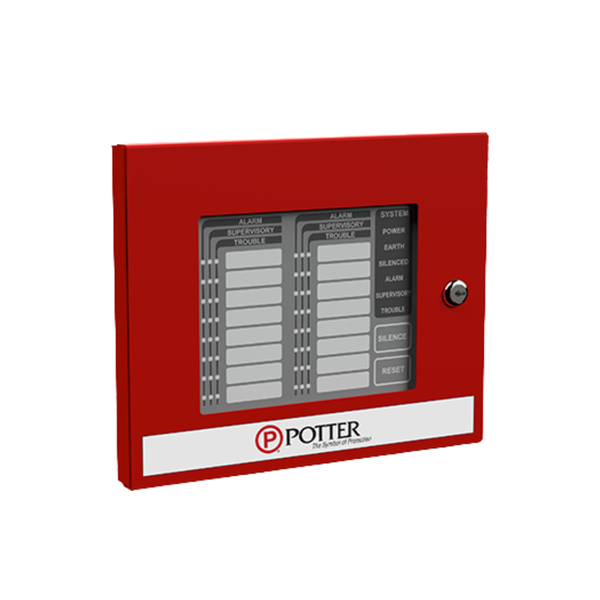

The Potter LED-16F is a 16-zone LED remote annunciator built for Potter's PFC series, Potter Plus Series, AFC, and IPA series addressable fire alarm control panels, giving a monitoring location clear per-zone visibility into alarm, supervisory, and trouble conditions. It flush-mounts to a single-gang or foursquare electrical box and communicates back to the main panel over an RS-485 connection, with slide-in labels so each of its 16 zones can be customized to the application.
Key Features
- 16 zones of dedicated LED indication for Alarm, Supervisory, and Trouble conditions
- Two slide-in label strips for custom zone labeling
- Flush or surface mountable, fitting a single-gang or foursquare electrical box
- Sheet metal enclosure secured with a Potter lock
- Up to 31 LED-16 Series annunciators can be networked on a single PFC, Potter Plus, AFC, or IPA panel
Technical Specifications
- Communication: RS-485 connection to the main fire alarm control panel
- Zone capacity: 16 zones per unit, up to 31 units per system
- Stock/part number: 3992727
