Condition: New

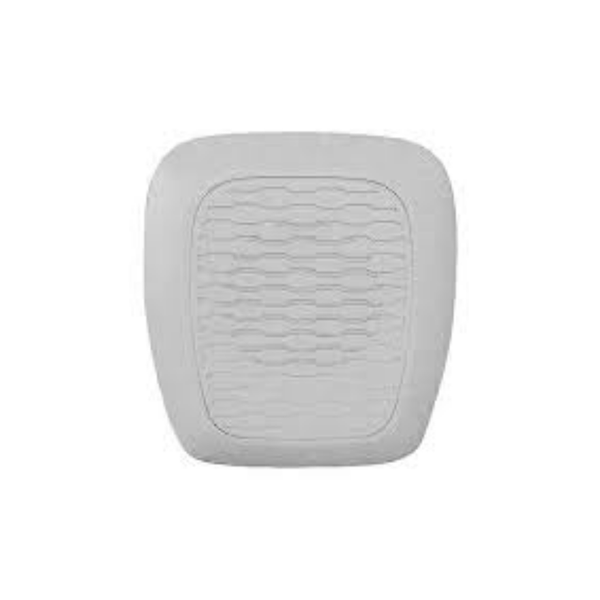

Potter Electric Signal LFH-24W
Potter Electric Signal LFH-24W
Sounder White 520 Hz Low Freq
Regular price
$82.99
Sale price
$82.99
Regular price
Shipping calculated at checkout.
In stock!
Key Features
- Low-frequency audible sounder (520 Hz) for hearing-impaired accessibility
- Square wave temporal 3-tone pattern
- Meets NFPA 72 requirements for sleeping area alarm signals
- Jumper-selectable normal/loud decibel output
- Field-verified Checkmate voltage verification feature
Technical Specifications
- Frequency: 520 Hz square wave
- Tone Pattern: Temporal 3
- Sound Output: 88.3 dBA (anechoic chamber measurement)
- Voltage Range: 16-33 VDC or full-wave rectified AC
- Wiring: 18-12 AWG wire gauge
- Physical: 5.5"W × 1.625"D × 6.125"H
- Mounting: 4" universal metal bracket with Super-Slide feature
- Color: Off-white housing
- Jumper Selection: Normal or loud decibel tone options
Certifications
- UL Listed (ANSI/UL 464, ANSI/UL 1480)
- CAN/ULC S525 compliant
- NFPA 72 fire alarm standard compliance
