Condition: New

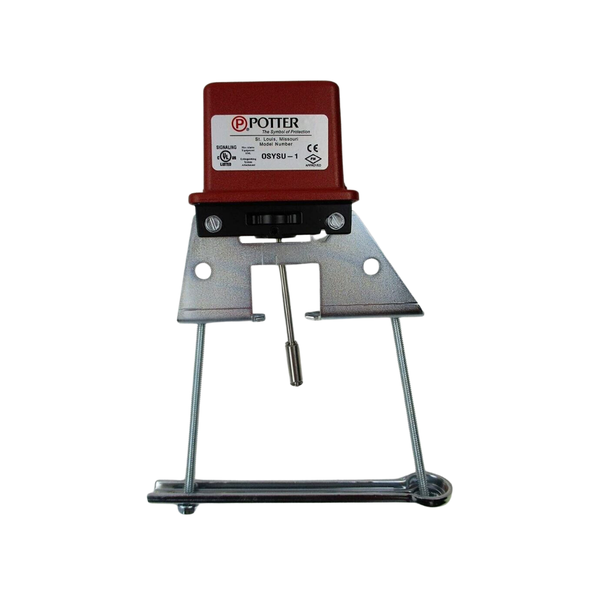

Potter Electric Signal OSYSU-1
Potter Electric Signal OSYSU-1
Switch Supervisory Single OSY
Regular price
$142.99
Sale price
$142.99
Regular price
Shipping calculated at checkout.
In stock!
Key Features
- OS&Y (outside screw and yoke) valve supervisory switch with tamper detection
- Three-position detection: open, closed, and tampered
- Adjustable length trip rod for 2-12 inch valve compatibility
- NEMA 4X/IP 65 corrosion-resistant enclosure
- Accommodates up to 12 AWG wire with two conduit entrances
Technical Specifications
- Contact Configuration: One SPDT (Form C)
- Contact Rating: 10A at 125/250V AC, 2A at 30V DC resistive, 10mA minimum at 24V DC
- Physical Dimensions: 6.19" L x 2.25" W x 5.69" H
- Weight: 1.6 lbs (0.73 kg)
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Valve Mounting: 2-12" (50-300mm) valves, some smaller sizes
Certifications
- UL Listed supervisory switch
- NEMA 4X/IP 65 rated enclosure
- RoHS compliant
