Potter Electric Signal PAD100-DIM
Potter Electric Signal PAD100-DIM
In stock!

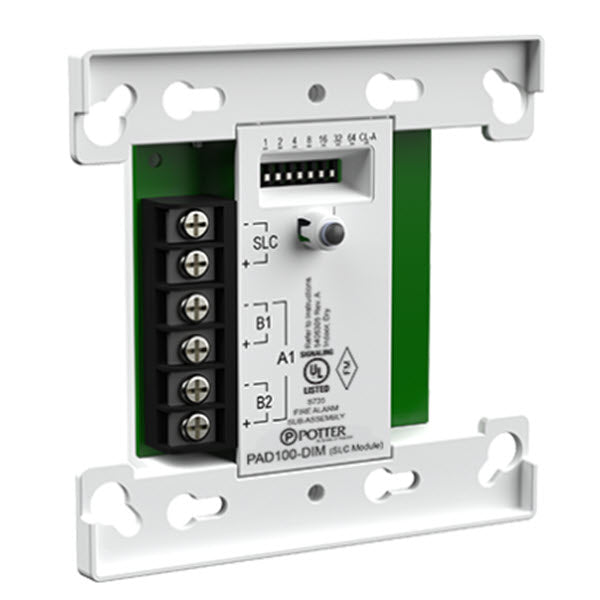

The Potter PAD100-DIM is a dual input module that uses a single SLC loop address to monitor two independent Class B initiating-device circuits, or one Class A circuit, making it well suited to jobs like watching sprinkler waterflow and valve tamper switches located in the same area. The module mounts to a 4" square or double-gang box, and a single red LED flashes as it is polled by the panel under normal conditions and flashes faster when either input activates.
Key Features
- Two independent monitoring channels on a single SLC address
- Monitors two Class B circuits or one Class A circuit
- Ideal for co-located waterflow and tamper switch monitoring
- Single status LED with distinct normal/activated flash rates
Technical Specifications
- Loop addresses used: 1 (for both monitored circuits)
- Mounting: 4" square or double-gang box
- Protocol: Potter PAD Addressable Protocol only
Certifications
- UL Listed dual input monitor module for Potter addressable fire alarm systems
