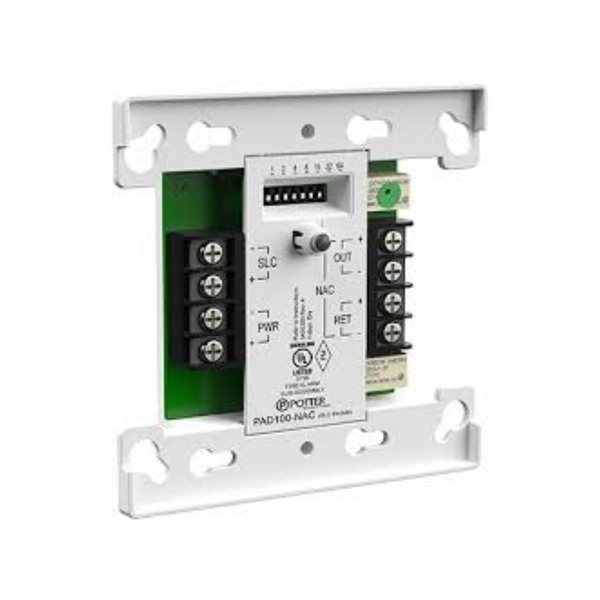

Potter Electric Signal PAD100-NAC

Key Features

• Programmable addressable Notification Appliance Circuit (NAC) module on a single SLC loop address
• Single module controls one Class B or Class A notification appliance circuit
• Alternative Class B releasing circuit configuration for life safety applications
• Supervises and monitors 24 VDC auxiliary power supply
• Detects loss of host power and reports system trouble to panel
• Compact design mounts in standard 4" or double-gang electrical boxes

Technical Specifications

• Type: Addressable notification appliance circuit module
• SLC Address: One address on SLC loop
• Output Configuration: Programmable NAC or Class B releasing circuit
• Wiring Modes: Class A, Class X, and Class B compatible
• Power Requirement: 24 VDC auxiliary power supervised
• Power Monitoring: Detects 16-33 VDC auxiliary feed variations
• Status Indicator: Red LED (flashes when polled by panel)
• Terminal Capacity: Accepts 22 to 12 AWG wire
• Mounting: 4" or double gang electrical box installation
• Dimensions: 4.17" L x 4.17" W x 1.14" D (106mm x 106mm x 29mm)

Certifications

• Approved for use with addressable fire alarm control panels
• Class A and Class B notification appliance circuit compatible
