Potter Electric Signal | PAD200-PCHD

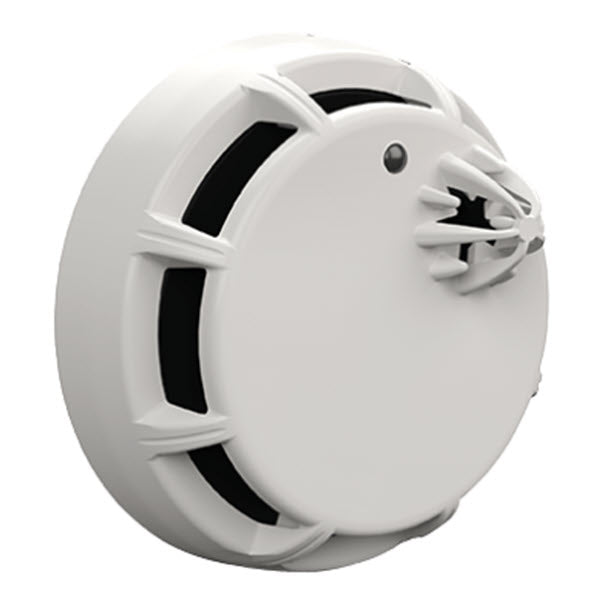

The PAD200-PCHD is a listed Analog Addressable photoelectric smoke sensor, rate of rise and/or fixed temperature heat sensor and carbon monoxide (CO) sensor compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol. The CO sensing portion utilizes a proven electrochemical sensor for accurate detection of CO gas for life safety applications.

Features

• Photoelectric Smoke Detection compliant with UL 268 7th Edition
• Carbon Monoxide (CO) detection compliant with UL 2075
• Heat Detection compliant with UL 268 and UL 521 7th Edition
• Walk Test mode allows for fast easy validation of CO sensor operation
• Low profile, less than 2 inches with the base
• Wide selectable sensitivity range of 1.0 to 3.5%/foot
• Temperature range of 32° F to 115° F
• Selectable Rate of Rise and/or fixed heat detector
• Fixed temperature range of 135° F to 185° F
• Sensor communicates sensitivity to control panel
• UL listed smoke calibration and sensitivity
• Optional locking tab to prevent unwanted removal
• Simple DIP switch address setting, no programming tool required
• LED alarm indicator
