Potter Electric Signal PAD300-CD

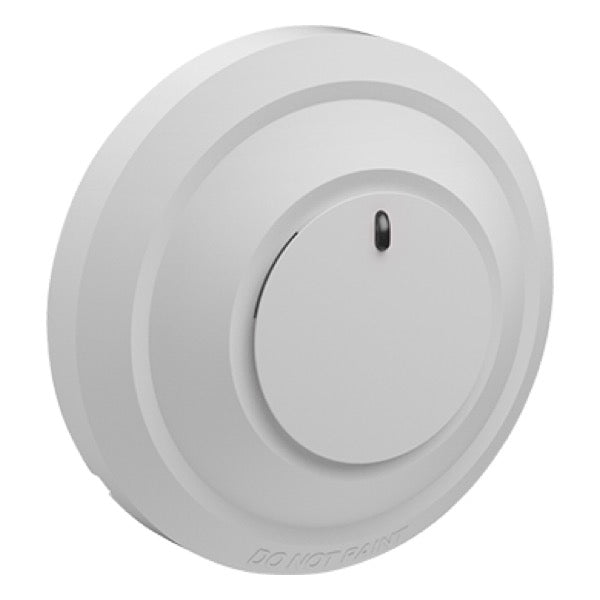

Potter PAD300-CD Analog Addressable Carbon Monoxide Detector

The Potter PAD300-CD is an analog addressable carbon monoxide (CO) detector designed for use with fire alarm control panels that support the Potter Addressable Device (PAD) protocol. Utilizing advanced electrochemical sensing technology, it provides accurate CO detection for life safety applications.

Key Features:

• Advanced CO Detection: Employs a proven electrochemical sensor for reliable detection of carbon monoxide gas.

• UL 2075 Compliant: Meets the standards for system-connected CO detectors, ensuring safety and reliability.

• 10-Year Sensor Lifespan: Features a built-in end-of-life indicator to notify when replacement is necessary.

• Low-Profile Design: Compact form factor with an off-white finish to blend seamlessly with ceiling aesthetics.

• Easy Installation: Compatible with PAD300 series bases and utilizes DIP switches for straightforward addressing without special tools.

• Diagnostic Features: Includes a magnetic test switch and walk test mode for simplified maintenance and testing.

• LED Alarm Indicator: Provides clear visual indication during alarm conditions.

Specifications:

• Operating Voltage: 24 VDC

• Current Draw: 300 µA

• Alarm Set-Points: 70 ppm (2 hours), 150 ppm (30 minutes), 400 ppm (10 minutes)

• Temperature Range: 32°F to 100°F (0°C to 38°C)

• Humidity Range: 0% to 93% (non-condensing)

• Dimensions: 1.22” (H) x 3.93” (D)

• Weight: Approximately 2.68 oz (68 g)

• Maximum Addresses per Loop: 127

• Certifications: UL 2075, UUKL Listed for Smoke Control
