Potter Electric Signal PAD300-DUCT

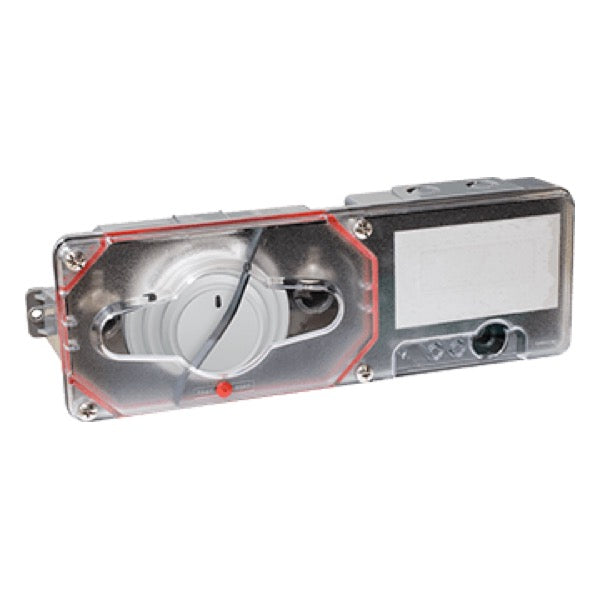

Potter PAD300-DUCT Analog Addressable Duct Smoke Detector

The Potter PAD300-DUCT is an analog addressable duct smoke detector designed to provide early detection of smoke and combustion products in HVAC ducts. It integrates seamlessly with Potter’s IPA and AFC/ARC series addressable fire alarm control panels, ensuring reliable protection in commercial, industrial, and residential applications.

Key Features:

• Smoke Detection: Utilizes a photoelectric sensor (PAD300-DD) to detect smoke within HVAC ducts, providing early warning of fire conditions.

• Compatibility: Designed for use with Potter’s IPA and AFC/ARC series addressable fire alarm control panels.

• Installation: Features a durable plastic enclosure with a clear cover, allowing for easy installation and maintenance without removing the detector head.

• Air Velocity Range: Operates effectively within an air velocity range of 100 to 4,000 feet per minute, accommodating various HVAC system configurations.

• Sampling Tubes: Compatible with STN series sampling tubes, available in standard lengths of 2.5 ft., 5 ft., and 10 ft., which can be cut to fit specific duct sizes.

• Tamper Switch: Equipped with an integrated cover tamper switch to ensure the integrity of the detector.

• Compliance: Meets NFPA regulations and is UUKL listed for smoke control applications.

Technical Specifications:

• Model Number: PAD300-DUCT

• Operating Voltage: 24 VDC

• Current Draw: 300 μA

• Detector Head Model: PAD300-DD

• Alarm Set Point: Fixed at 2.5%/ft (8%/m)

• Ambient Temperature Range: 32°F to 120°F (0°C to 49°C)

• Humidity Range: 10% to 85% Relative Humidity (Non-condensing)

• Dimensions: 13.5” L x 4.5” W x 2.25” H

• Weight: 2 lbs.
