Potter Electric Signal PAD300-IM

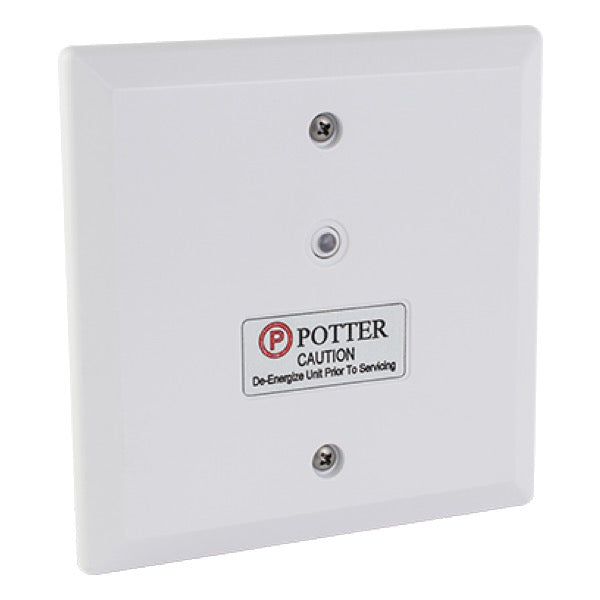

Potter Electric Signal PAD300-IM Isolator Module

The Potter PAD300-IM is an isolator module designed to enhance the reliability of addressable fire alarm systems by segmenting the Signaling Line Circuit (SLC). In the event of a short circuit, it disconnects the affected segment, ensuring the rest of the system remains operational.

Key Features:

• Short Circuit Isolation: Automatically detects and isolates short circuits on the SLC loop, minimizing system disruption.

• LED Status Indicator: Features a red LED that illuminates continuously when a short is detected, providing clear visual status.

• Automatic Reset: Once the short is resolved, the module restores normal operation without manual intervention.

• No Address Required: Operates without consuming an SLC address, simplifying system configuration.

• Versatile Mounting: Compatible with standard 4” square or double gang electrical boxes, facilitating flexible installation.

• Wide Compatibility: Suitable for SLC Class A, Class X, and Class B wiring configurations.

Technical Specifications:

• Operating Voltage: 24 VDC

• Standby Current: 100 μA

• Short Circuit Current: 2.75 mA

• Maximum Units per Loop: 254

• Operating Temperature: 32°F to 120°F (0°C to 49°C)

• Humidity Range: 0% to 93% (non-condensing)

• Dimensions: 4.17” x 4.17” x 1.14” (106mm x 106mm x 29mm)

• Wire Gauge: Accepts 22 to 12 AWG

• Certifications: UUKL Listed for Smoke Control
