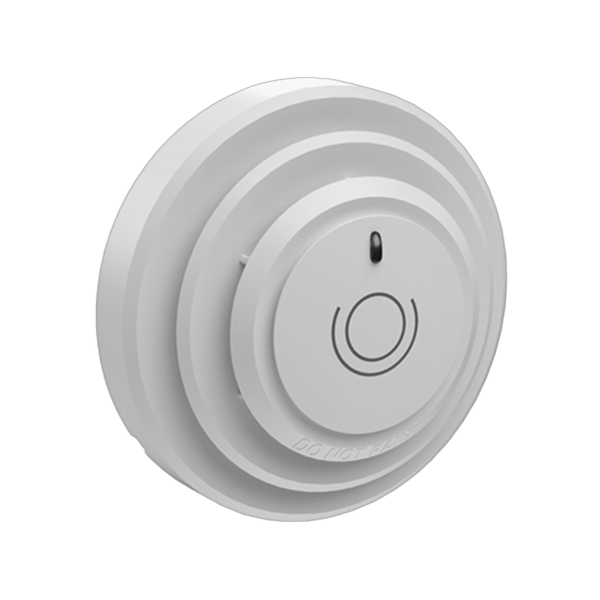

Potter Electric Signal PAD300-PCD

The Potter PAD300-PCD is an analog addressable combination photoelectric smoke and carbon monoxide (CO) detector, built on Potter's PAD protocol for addressable fire alarm systems. It's used where a single low-profile head needs to detect both smoke and CO conditions in the same space.

Key Features

• Combination photoelectric smoke and CO detection in a single low-profile head
• Adjustable smoke sensitivity with drift compensation
• Walk-test mode and magnetic test switch for simplified commissioning and maintenance
• DIP switch addressing; optional locking tabs; LED alarm indicator
• 10-year CO sensor lifespan

Technical Specifications

• Photoelectric Smoke Detection compliant with UL 268 7th Edition
• Carbon Monoxide (CO) detection compliant with UL 2075
• Smoke sensitivity range: 1.1-3.5% per foot, field adjustable
• Low-profile design, under 2 inches
• Addressing: DIP switch based (Potter PAD protocol)

Certifications

• UL 268 7th Edition Listed (smoke)
• UL 2075 Listed (CO)
• UUKL Listed for smoke control
