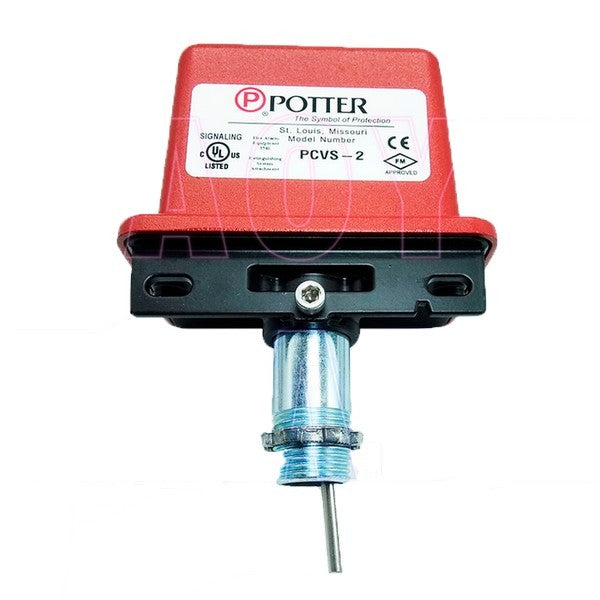

Potter Electric Signal PCVS-2
Potter Electric Signal PCVS-2
Switch Pressure Supervisory
Regular price
$157.99
Sale price
$157.99
Regular price
Shipping calculated at checkout.
In stock!
The Potter PCVS-2 is a weatherproof, tamper-resistant supervisory switch built to monitor the open position of fire sprinkler control valves. It installs directly into a ½" NPT opening and is used throughout fire protection systems to provide supervisory signaling whenever a control valve is moved from its normal fully-open position.
Key Features
- Monitors fire sprinkler control valve position for supervisory signaling
- Adjustable trip rod accommodates a range of valve stem sizes
- Tamper-resistant cover, with an optional tamper switch available
- Weatherproof die-cast enclosure suitable for indoor or outdoor installation
Technical Specifications
- Enclosure rating: NEMA 4X/6P (IP65/IP67) die-cast housing
- Operating temperature range: -40°F to 140°F
- Two SPDT switch outputs, rated 10A at 125/250 VAC or 2A at 30 VDC
- Mounts into a ½" NPT opening
Certifications
- Designed to support NFPA fire protection standards
