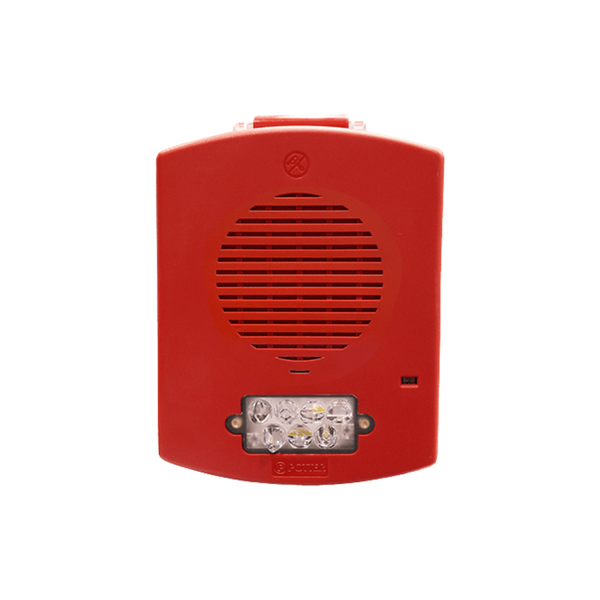

Potter Electric Signal PE-4XHS-FR

Key Features

• NEMA 3R/4X weatherproof horn strobe for harsh environments
• Corrosion-resistant design for demanding outdoor use
• Clear lens with red body FIRE marking
• 3-pattern horn selection (Continuous, T3, T3/T4)
• LED strobe with field-selectable candela

Technical Specifications

• Protection: NEMA 3R and 4X corrosion-resistant
• LED Strobe: 20 ms flash duration, 1 flash per second
• Candela (Wall): 15, 30, 75, 110, 150, 185 candela
• Horn Patterns: Continuous, Temporal 3, Temporal 3/4
• Power: 25 or 70 VRMS, DC/FWR 24V regulated (16-33V)
• Power Taps: 1/8W to 8W selectable
• Operating Temperature: -40°C to 66°C (-40°F to 150°F)
• Lens: Clear with red body FIRE marking
• Mounting: Wall or ceiling with backbox

Certifications

• NEMA 3R/4X rated weatherproof
• UL listed combination horn strobe
