Potter Electric Signal PS10-1

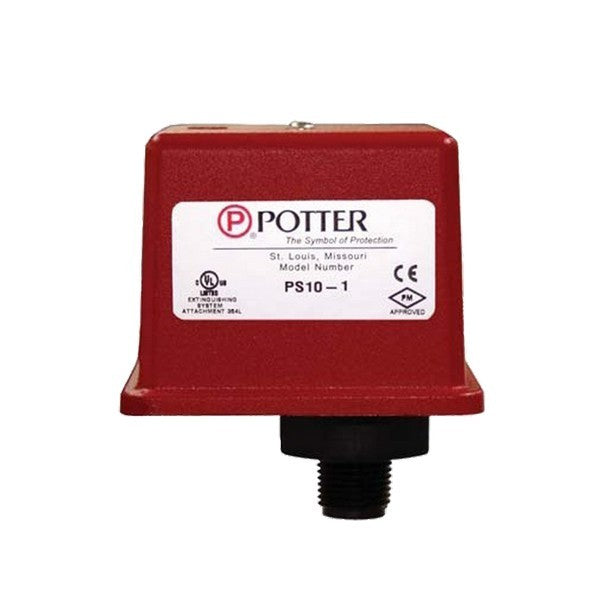

The Potter PS10-1 is a pressure-actuated switch that detects waterflow conditions in wet-pipe fire sprinkler systems with alarm check valves, as well as dry-pipe, pre-action, and deluge configurations. Beyond flow detection, it doubles as a low-pressure supervisory switch across an adjustable 4 to 15 PSI (0.27–1.03 BAR) range, so a single device can cover both jobs on the same system. It's built into a die-cast, NEMA 4/IP55-rated enclosure with a non-corrosive 1/2" NPT nylon pressure connection, making it suitable for indoor or outdoor use with the right conduit fittings.

Key Features

• Detects waterflow in wet (with alarm check valve), dry, pre-action, and deluge sprinkler systems
• Doubles as a low-pressure supervisory switch, adjustable 4–15 PSI (0.27–1.03 BAR)
• Two isolated wiring chambers with dual 1/2" conduit knockouts
• NEMA 4/IP55 die-cast enclosure for indoor or outdoor use

Technical Specifications

• Contact: One SPDT Form C contact
• Factory Adjustment: 4–8 PSI (0.27–0.55 BAR), typical differential 2 PSI (0.13 BAR)
• Maximum System Pressure: 300 PSI (20.68 BAR)
• Connection: Non-corrosive 1/2" NPT nylon fitting

Certifications

• UL, cUL, CSFM Listed; FM and LPC Approved; NYMEA Accepted
