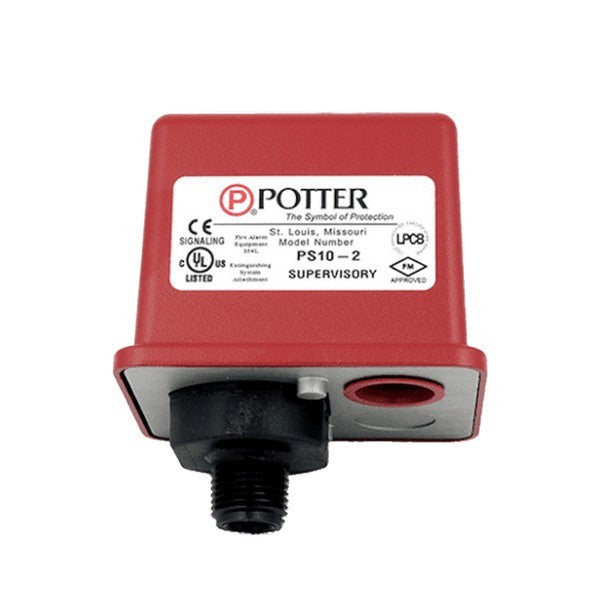

Potter Electric Signal PS10-2

Key Features

• Pressure-actuated waterflow switch for dry pipe and deluge systems
• Two independent SPDT switch sets for dual signaling
• Field-adjustable pressure settings (4-15 PSI supervisory range)
• Non-conductive enclosure with separate isolated wiring chambers
• Tool-free switch adjustment for flexible field configuration

Technical Specifications

• Activation Pressure: 4-8 PSI (0.27-0.55 BAR) adjustable
• Supervisory Pressure Range: 4-15 PSI (0.27-1.03 BAR)
• Contact Configuration: Two sets of SPDT
• Contact Rating: 10.1A at 125/250V AC, 2.0A at 30V DC
• Maximum Service Pressure: 300 PSI (20.68 BAR)
• Physical Dimensions: 3.20" x 3.80" x 4.20"
• Weight: 2.5 lbs
• Pressure Connection: 1/2" NPT male

Certifications

• UL Listed pressure switch
• FM Approved for fire protection systems
