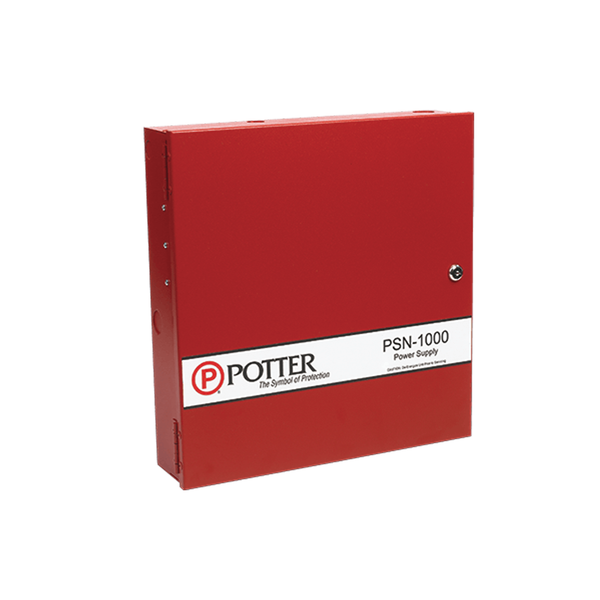

Potter Electric Signal PSN-1000

The Potter PSN-1000 is an intelligent notification power supply and P-Link repeater designed for use with Potter PFC-6000 series fire alarm control panels. It expands a fire alarm system's notification appliance capacity and extends P-Link communication range, making it a key component for larger buildings or campuses where the main panel alone can't cover the required notification load or communication distance.

Key Features

• Six Class B or three Class A NAC outputs, each rated at 3 amps
• P-Link repeater function extends panel communication an additional 6,500 feet
• Two supervised, programmable dry-contact inputs
• Supports multiple synchronization patterns, constant power, ANSI Temporal Code 3, and door-holder modes
• Up to 31 power supplies can be synchronized on a single panel

Technical Specifications

• Input: 120/220 VAC; regulated output: 24 VDC
• Communication range from panel: up to 6,500 feet (extendable via repeater function)
• Battery charging: supports batteries up to 55 AH; cabinet accommodates 18 AH internally

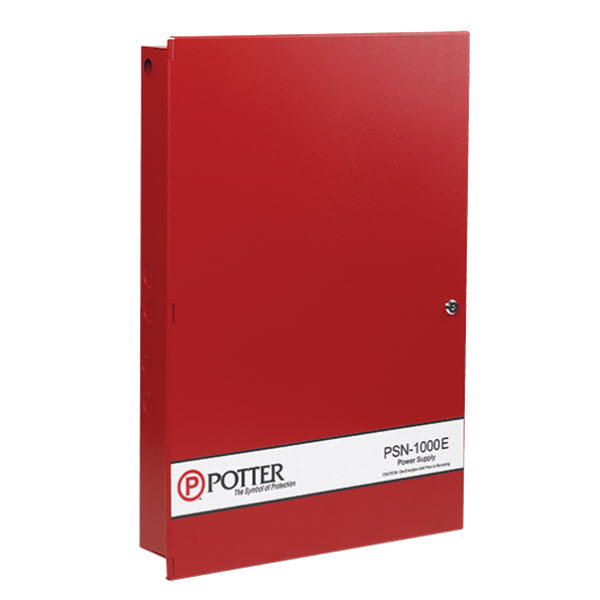

• 18-gauge steel enclosure with red powder-coat finish and Potter key lock
• Weight: approximately 21.36 lbs

Certifications

• UL Listed for fire alarm notification power supply applications
